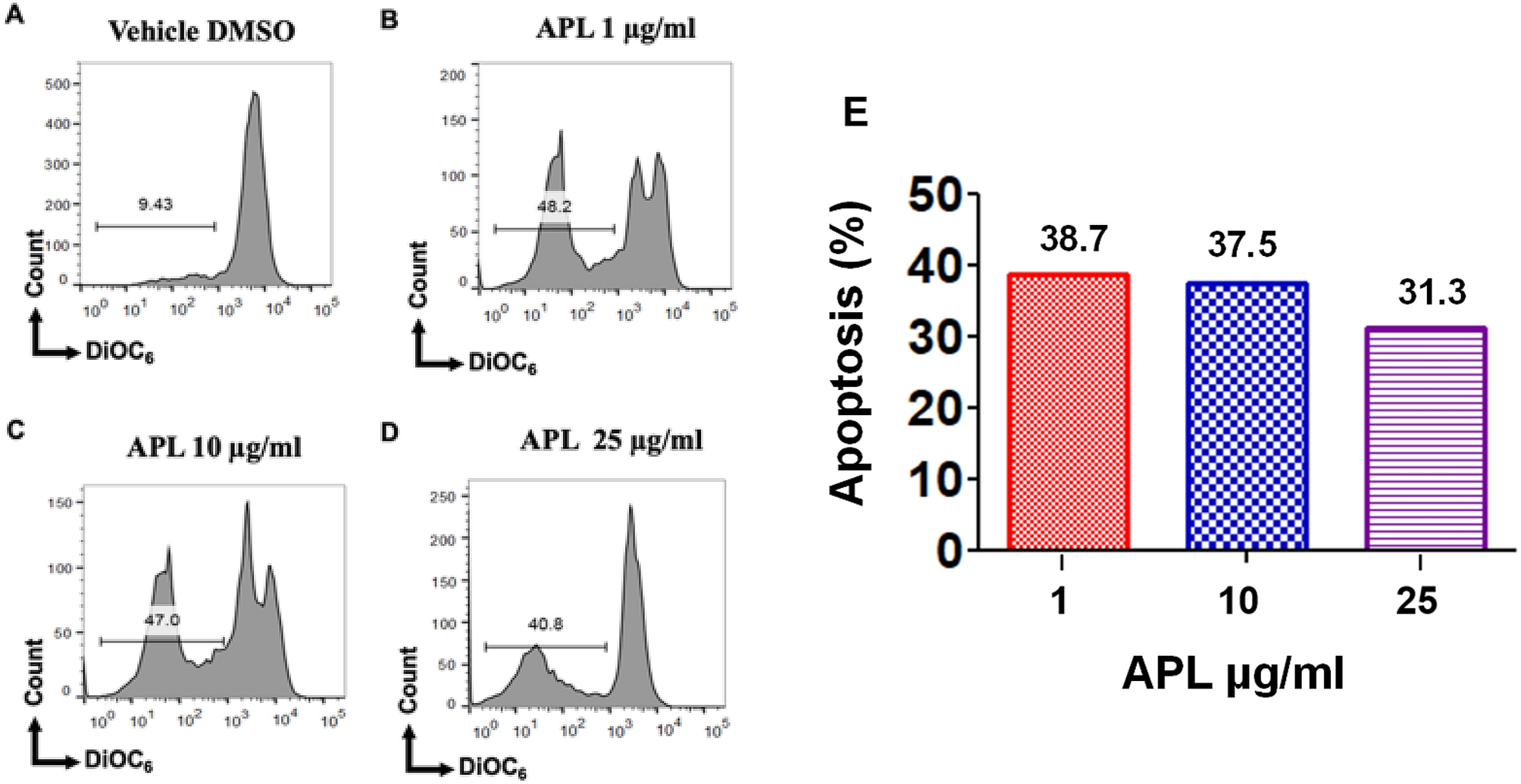

Figure 8
Effect of APL treatment on mitochondrial membrane potential (MMP) in EL4 cells: This was determined using 3,3′-Dihexyloxacarbocyanine Iodide (DiOC6) after treatment with APL (Psiadia lithospermifolia) or vehicle (DMSO). (A) (vehicle DMSO), (B) (1 µg/ml), (C) (10 µg/ml), (D) (25 µg/ml) of APL extract. The data presented are representative of three independent experiments. (E) shows data as mean % apoptosis relative to vehicle controls from two independent experiments.
