Figure 2

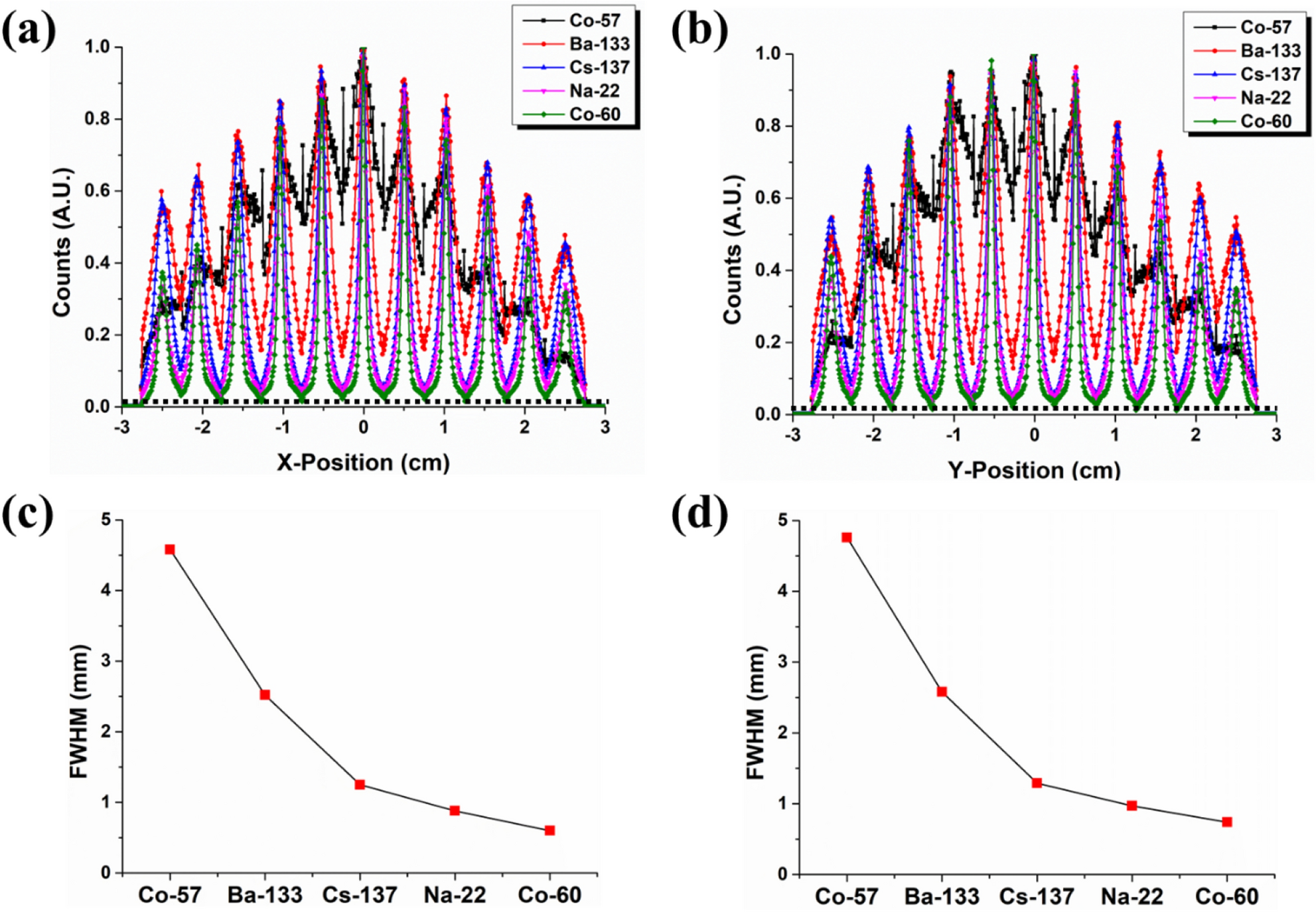

(a) 1D row-sum profile and (b) 1D column-sum profile derived from the flood map in Fig. 1 The corresponding FWHM resolution of the pixel-center for all row pixels (c) and column pixels (d) as the radionuclide is varied.
