Figure 2
From: Vivid biofluorescence discovered in the nocturnal Springhare (Pedetidae)

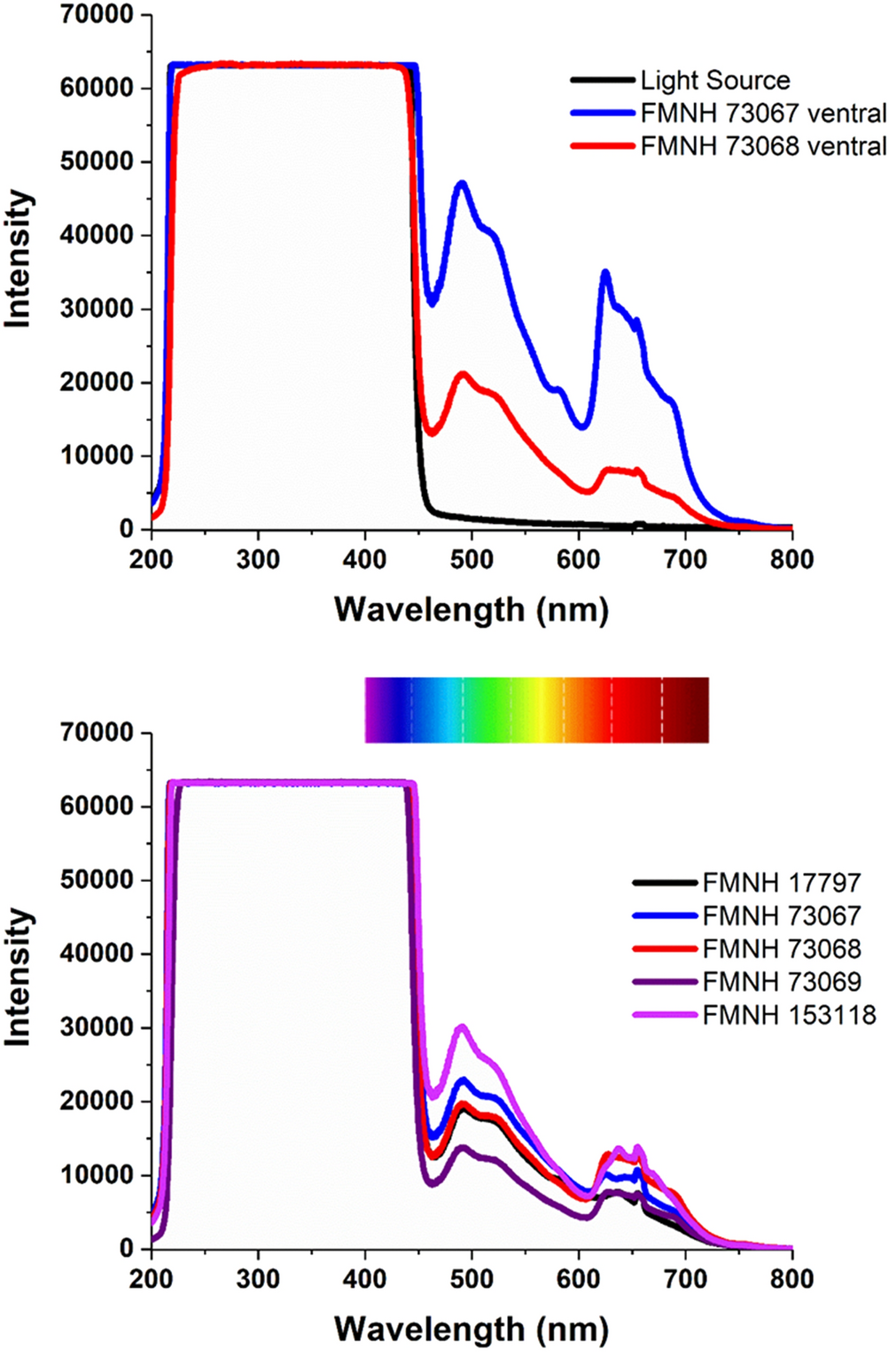

Spectra of biofluorescence observed in East African springhare. (Top panel) Spectra of biofluorescence on the ventral side of two different P. surdaster specimens (red and blue lines) in comparison to the spectrum of the light source taken against a diffuse reflectance standard (black line). (Bottom panel) Spectra of biofluorescence from the dorsal side of five different P. surdaster specimens. Peaks in the visible range (400–750 nm) represent biofluorescence.
