From: 3-D shape reconstruction of non-uniform reflectance surface based on pixel intensity, pixel color and camera exposure time adaptive adjustment

Figure 11

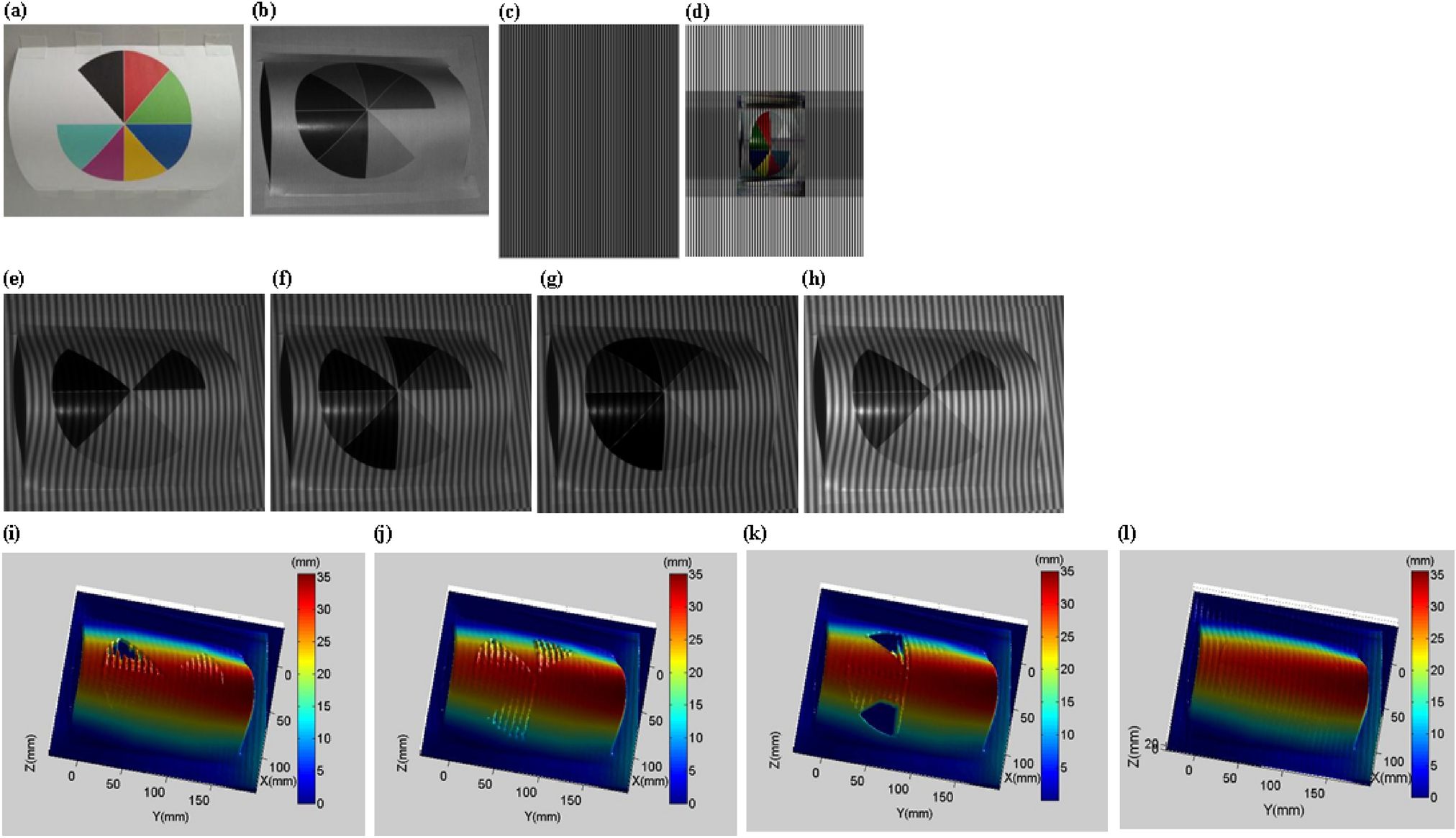

3-D shape reconstruction of a colorful object. (a) Another colorful object. (b) A captured image without fringe projection. (c) Original projection fringe pattern. (d) Optimized projection fringe pattern. (e) A captured fringe pattern during red light projection. (f) A captured fringe pattern during green light projection. (g) A captured fringe pattern during blue light projection. (h) Optimized captured fringe pattern using the method proposed in this paper. (i) Reconstructed 3-D surface shape during red light projection. (j) Reconstructed 3-D surface shape during green light projection. (k) Reconstructed 3-D surface shape during blue light projection. (l) Reconstructed 3-D surface shape using the method proposed in this paper.
