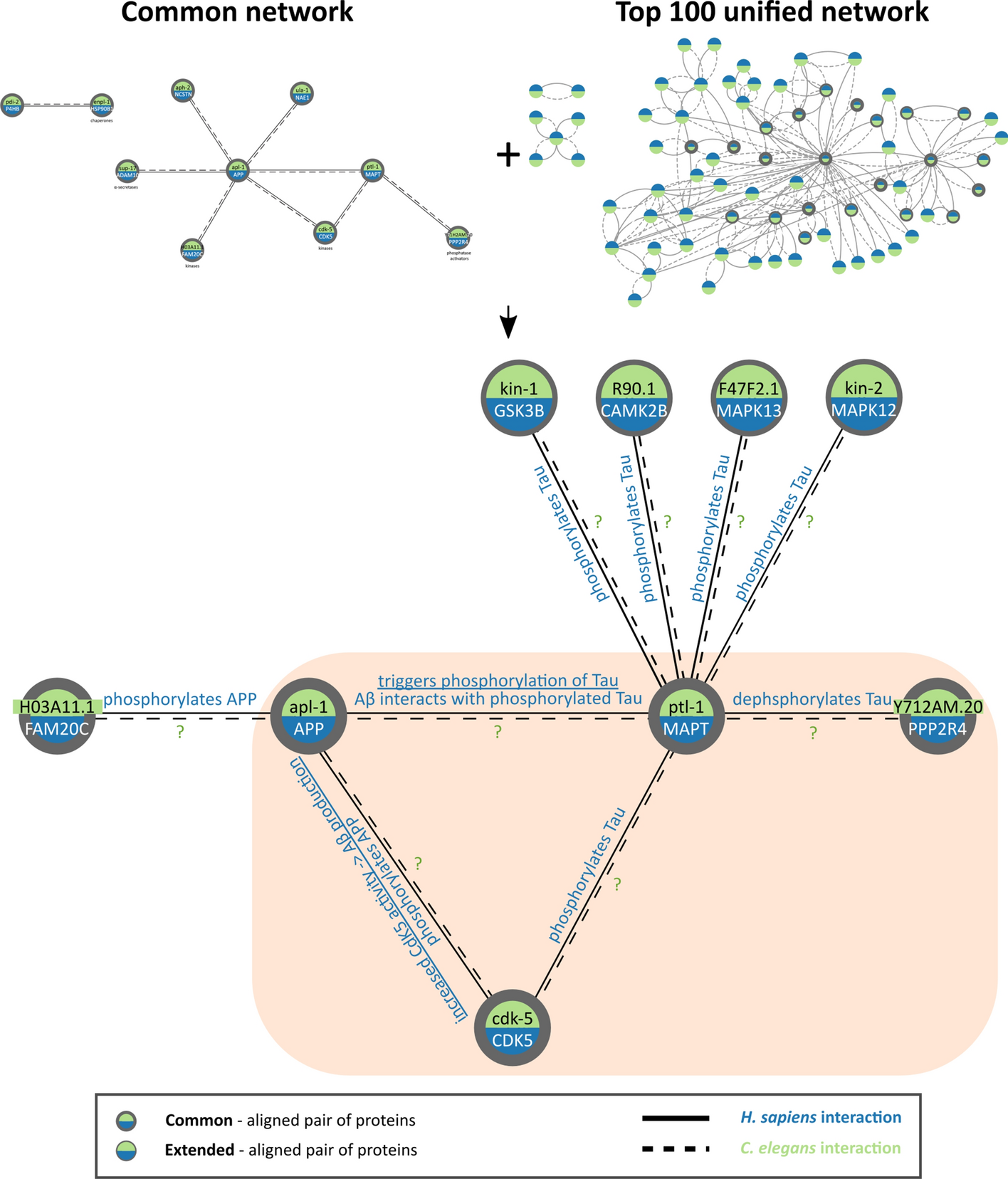

AD associated phosphorylation-related proteins conserved in H. sapiens and C. elegans. Shown here are elements related to phosphorylation of APP and Tau found in the Common Network, extended with relevant proteins and interactions from the “Top 100 interaction partners” dataset. The interactions appear to be conserved in both organisms, but no information was available for the C. elegans interactions. The gene symbol for Tau is MAPT.
