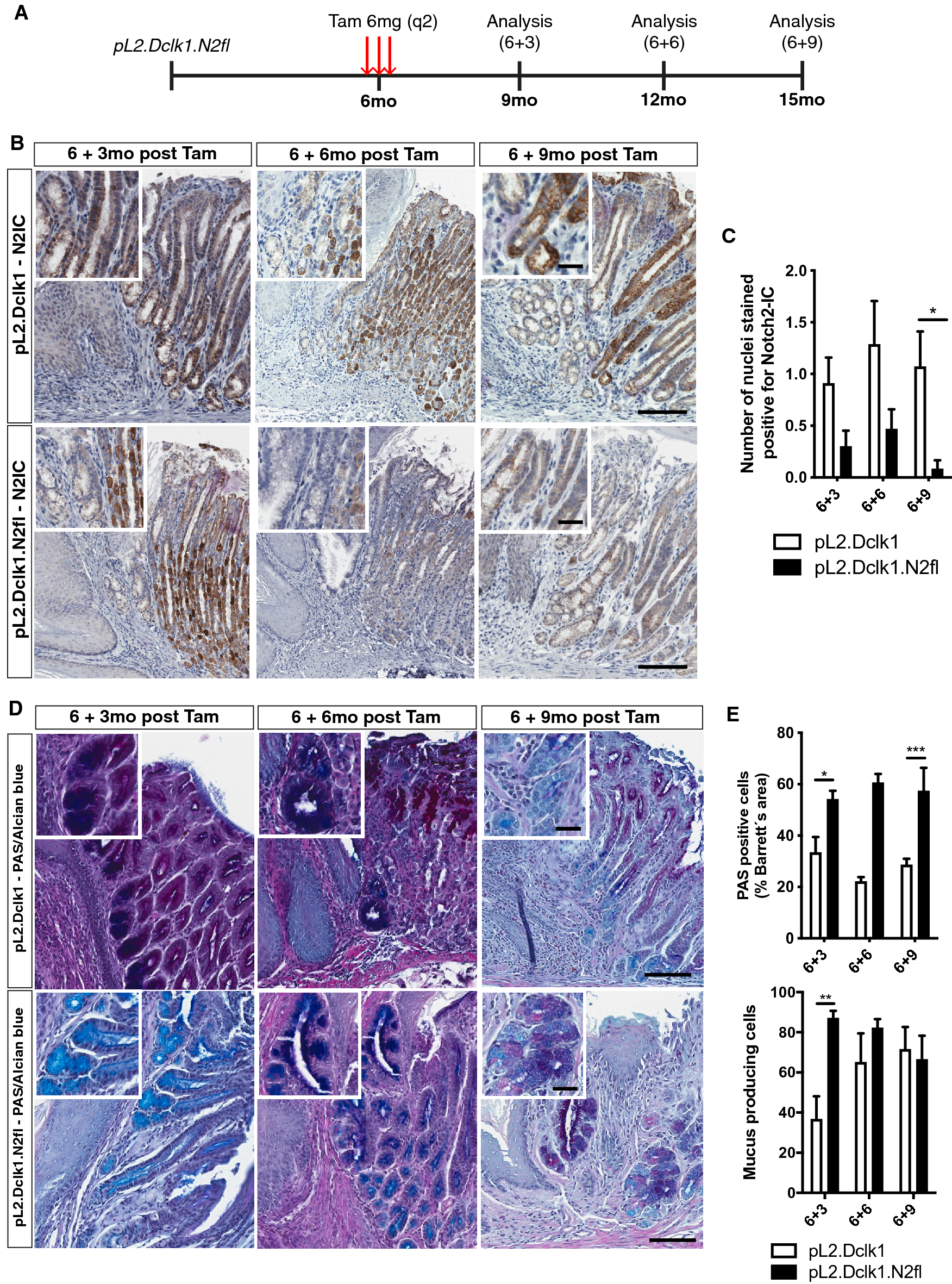

Figure 3

Genetic ablation of the Notch 2 receptor in Dclk1-positive gastric tuft cells decelerates BE progression. (A) Experimental scheme illustrating timepoints of Tamoxifen induction and tissue collection for analysis. (B) Representative stainings for Notch2-IC of the SCJ of pL2.Dclk1 and pL2.Dclk1.N2fl mice, respectively; scale bars = 200 µm; insets scale bar = 50 µm; for pL2.Dclk1, at 6 + 3 and 6 + 6 the same pictures are shown as in Fig. 2A for comparison to pL2.Dclk1.N2fl tissues. (C) Histopathologic scoring of Notch2-IC stained nuclei in pL2.Dclk1.N2fl tissues compared to pL2.Dclk1 controls (6 + 3 n = 10 pL2.Dclk1.N2fl, n = 11 pL2.Dclk1 controls; 6 + 6 n = 15 pL2.Dclk1.N2fl, n = 7 pL2.Dclk1 controls; 6 + 9 n = 12 pL2.Dclk1.N2fl, n = 14 pL2.Dclk1 controls, ordinary two-way ANOVA, p = 0.014). (D, E) Histopathologic analysis and scoring in pL2.Dclk1.N2fl tissues compared to pL2.Dclk1 controls for PAS-positive cells at the SCJ (6 + 3 n = 6 pL2.Dclk1.N2fl, n = 6 pL2.Dclk1 controls, ordinary two-way ANOVA, p = 0.017; 6 + 6 n = 9 pL2.Dclk1.N2fl, n = 2 pL2.Dclk1 controls; 6 + 9 n = 5 pL2.Dclk1.N2fl, n = 7 pL2.Dclk1 controls, ordinary two-way ANOVA, p = 0.0009) and mucous producing cells (6 + 3 n = 5 pL2.Dclk1.N2fl, n = 6 pL2.Dclk1 controls, ordinary two-way ANOVA, p = 0.0057; 6 + 6 n = 9 pL2.Dclk1.N2fl, n = 4 pL2.Dclk1 controls; 6 + 9 n = 7 pL2.Dclk1.N2fl, n = 7 pL2.Dclk1 controls); scale bars = 200 µm; insets scale bar = 50 µm; error bars indicate SEM.
