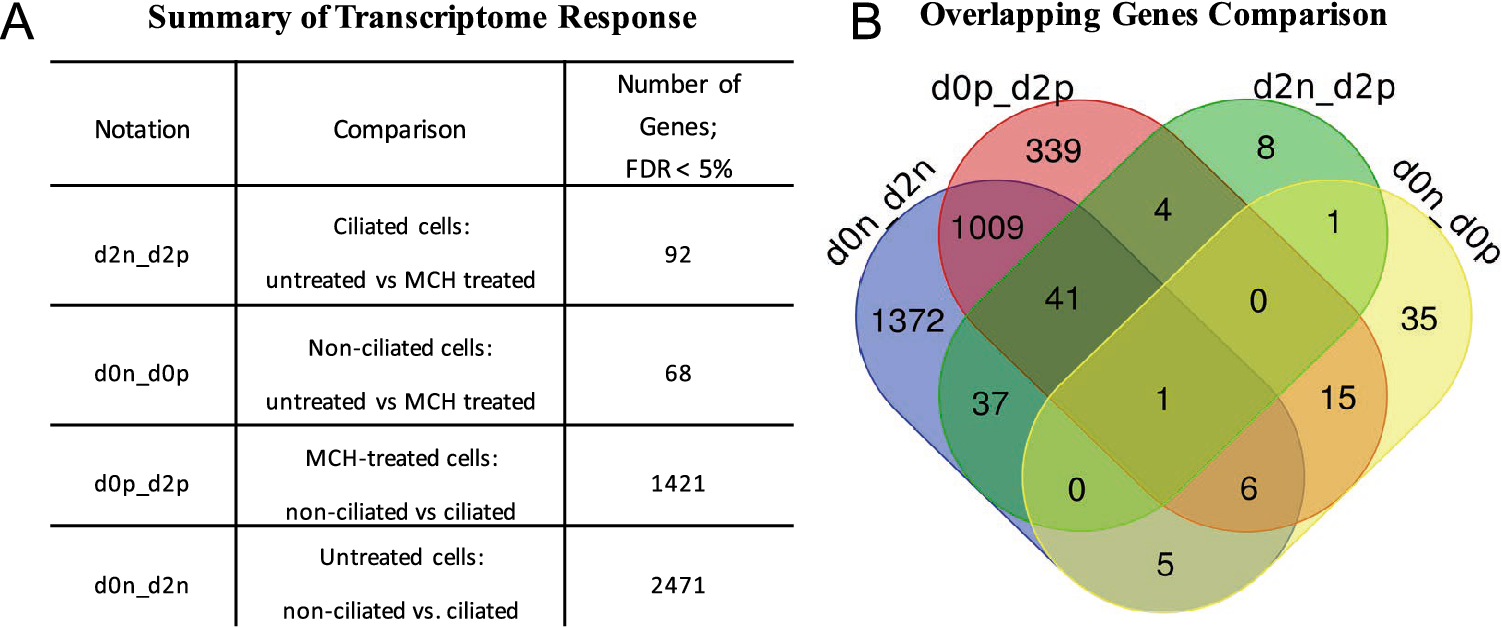

Figure 3
From: Transcriptome analysis of ciliary-dependent MCH signaling in differentiating 3T3-L1 pre-adipocytes
RNA-Seq was performed on total RNA samples isolated from either 3T3-L1 pre-adipocytes or Day 2 differentiating pre-adipocytes harboring primary cilia. Some samples were pretreated with 100 nM MCH prior to harvesting. (A) The number of responding genes reaching statistical significance with a False discovery rate (FDR) of < 0.05 is shown. (B) A Venn Diagram illustrating overlapping genes for all comparison groups.
