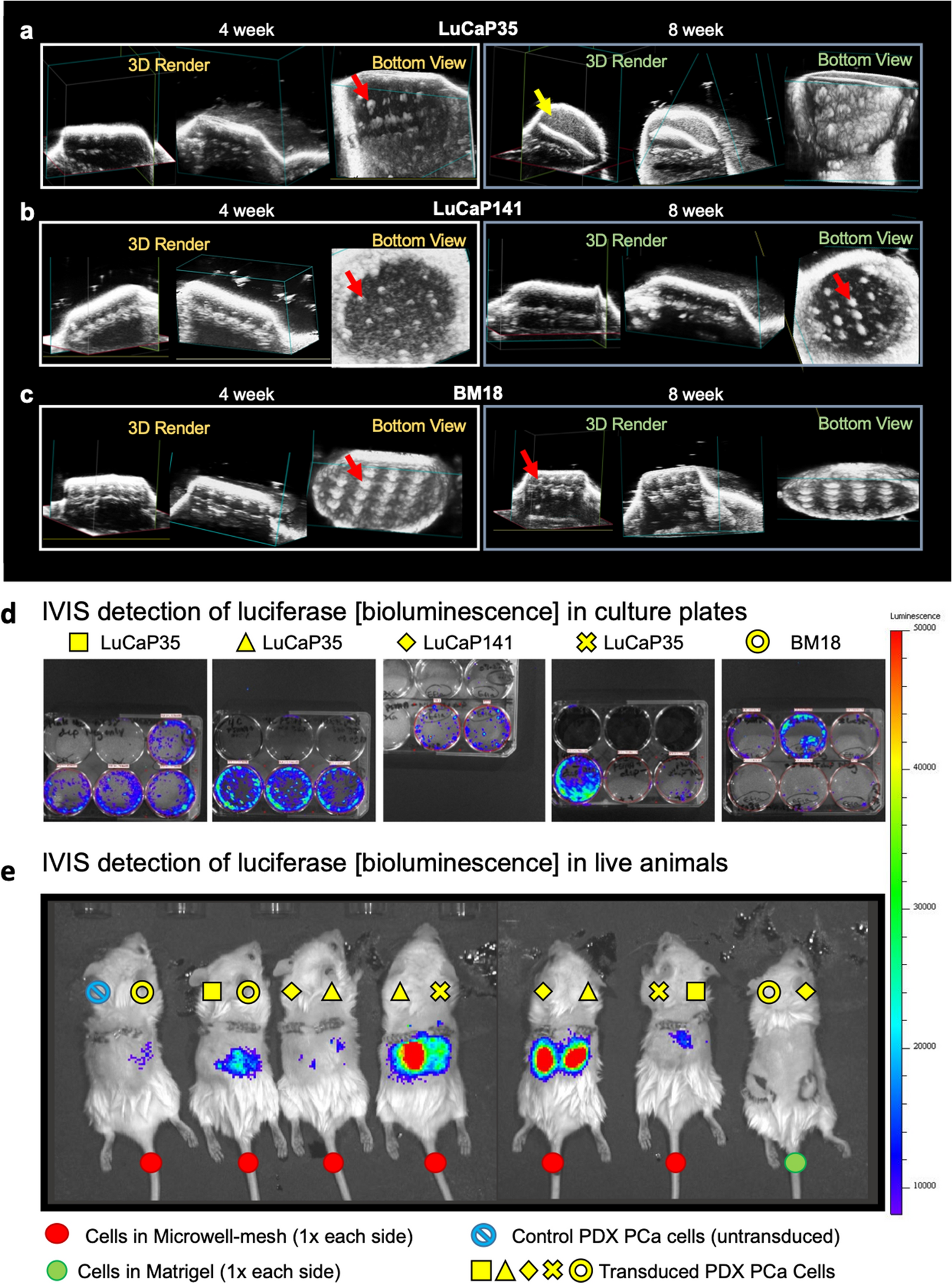

Live animal imaging of microtumours. (a-c) Microtumours imaged with the VEVO LAZR at 4 and 8 weeks. Microtumours either appeared as spheroidal and arrayed tissues contained within the Microwell-mesh (red arrows), or as a larger cell mass external to the Microwell-mesh platform following breaching of the Microwell-mesh (yellow arrow). (d) Bioluminescence signal from transduced PDX cells cultured in well plates. Each culture is assigned a yellow shape, and this aligns with the cells implanted into animals in caption E. (e) Bioluminescence signal from transduced microtumours in Microwell-mesh implanted into mice. Red dot corresponds to animals with Microwell-mesh implanted, green dot corresponds to an animal with transduced cells in Matrigel. Notation from caption D indicates PDX population, i.e. Yellow square = LuCaP35, Yellow triangle = LuCaP35, Yellow diamond = LuCaP141, Yellow cross = LuCaP35, and yellow circle = BM18.
