Figure 1

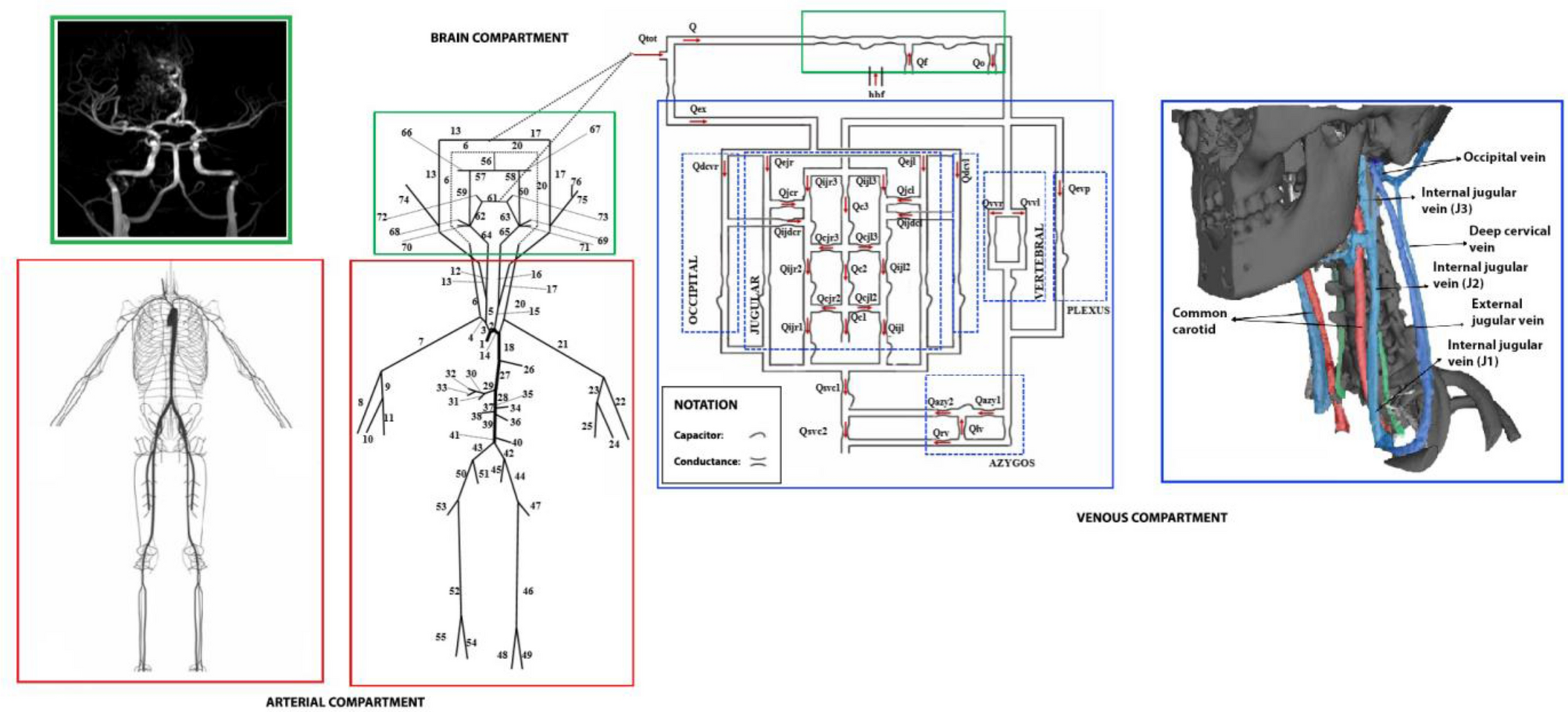

Mathematical model for the simulation of human circulation. Red boxes are the anatomy (left) and scheme (right) of the arterial tree. Green boxes are the anatomy (left), scheme (middle) of the Willis circle tree, and the scheme of the intracranial 0-D submodel (right). Blue boxes are the scheme (left) and anatomy (right) of the venous compartment.
