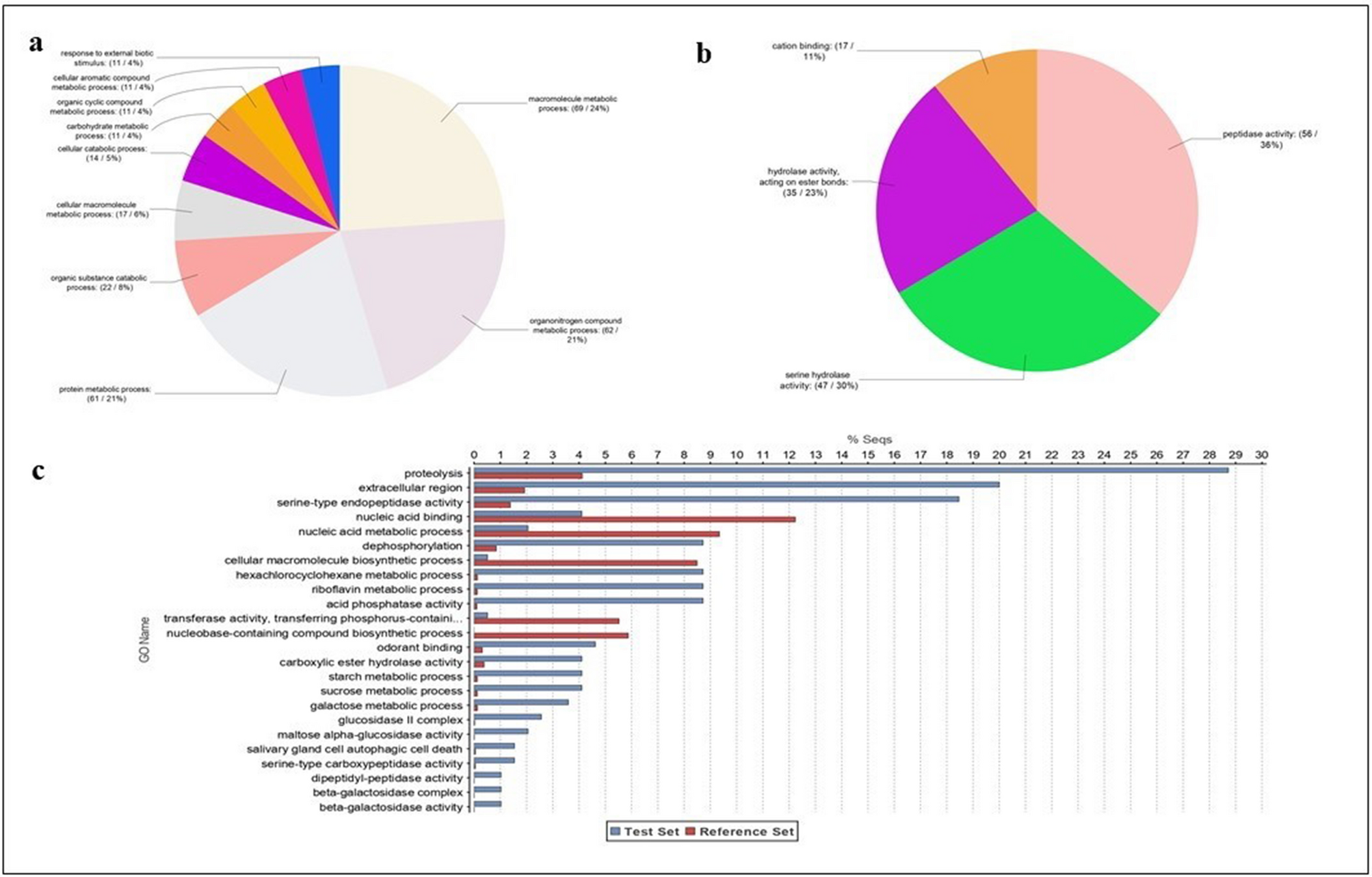

Figure 4

Gene Ontology sequence annotation of T. sinensis 195 venom proteins. Gene Ontology (GO) assignments for the T. sinensis venom proteins. GO assignments as predicted for their involvement in (a) biological processes and (b) molecular functions. All data are presented at level 4 GO categorization. Classified gene objects are depicted as absolute numbers and percentages (in brackets) of the total number of gene objects with GO assignments. In (c) enriched distribution of Gene Ontology (GO) terms in T. sinensis venom proteins were identified. Bar charts show the GO terms that were significantly (false discovery rate (FDR) < 0.05) enriched in the group of venom proteins compared to the complete T. sinensis gland transcriptome. The GO terms are sorted in an ascending order according to their FDR value, starting with the most significantly enriched. Only the most specific GO terms are displayed. Differences are shown as the percentage of sequences associated with a specific GO category in the test set (venom protein-encoding contigs) versus the reference set (transcriptome backbone assembly) using Fisher’s exact test in OmicsBox.
