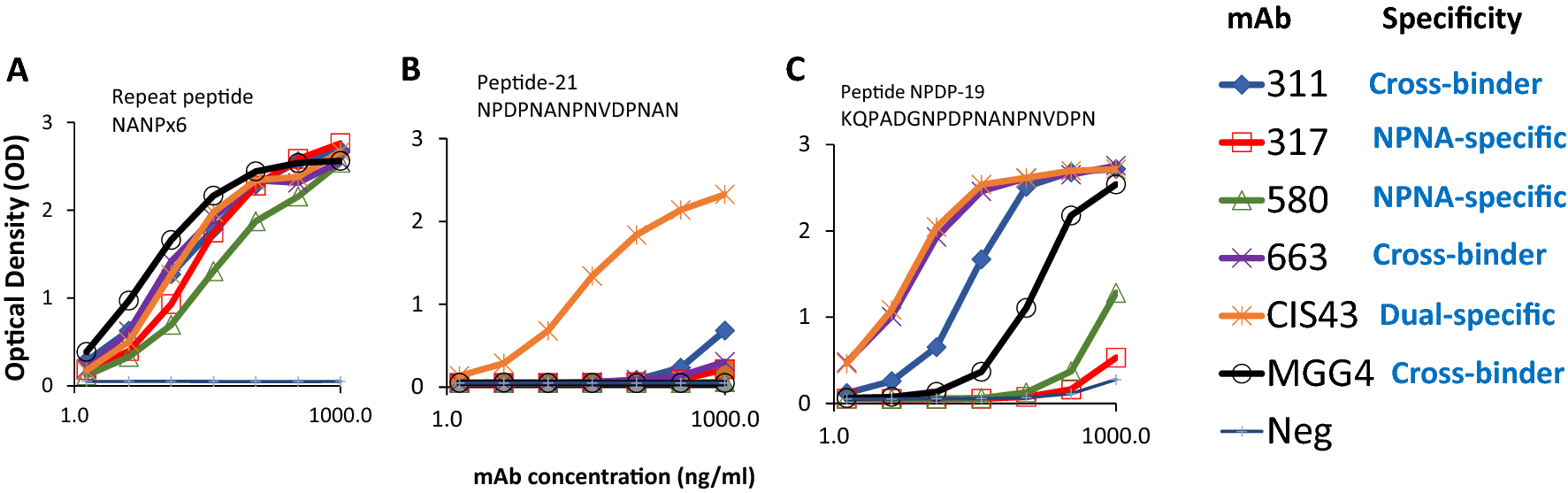

Figure 3

Epitope-specificity. Raw ELISA curves showing mAb binding patterns: (A) Target peptide NANPx6, (B) peptide-21 (NPDPNANPNVDPNAN) and (C) peptide NPDP-19 (KQPADGNPDPNANPNVDPN. Negative control wells (Neg) contained no primary antibody; a representative of three independent ELISA experiments was plotted.
