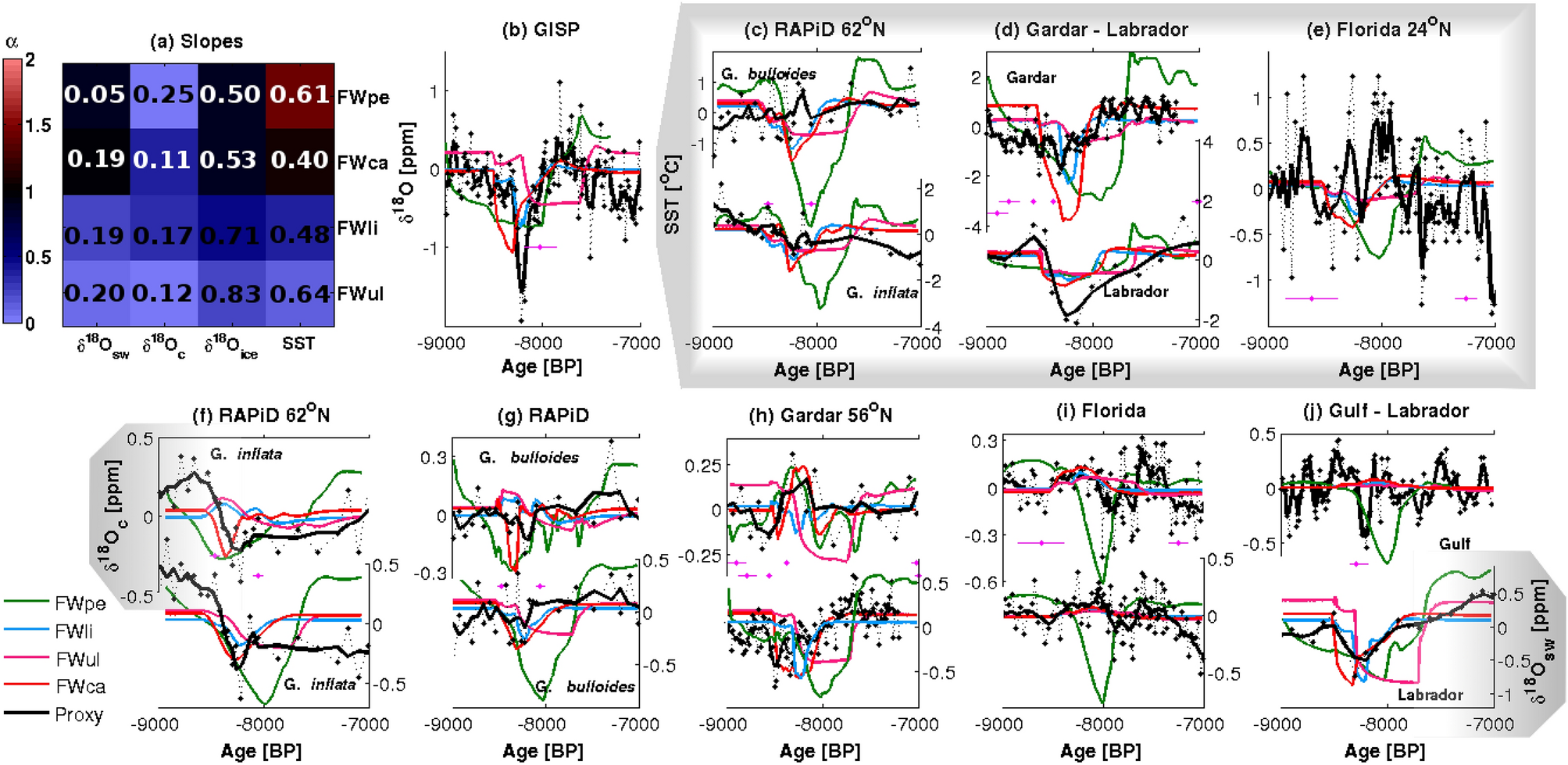

Figure 1
Comparison between time series of proxies and simulations for δ18Osw, δ18Oice, δ18Oc and SST for RAPiD (c,g), Gardar Drift (d,h), Florida Strait (e,i), GISP and Gulf cores (b,j), and slopes and RMSEs (a) in all simulations (locations in Fig. S1 and Table S1). Black dashed and full lines are core values and 2-point moving averages, respectively. Green, blue, magenta and red lines are time series for FWpe, FWli, FWul and FWca. The pink horizontal crosses are the dating (
) and dating errors (
) for the proxies. In (a) RMSE values are plotted in the center of the image while the colors of the squares indicate the values of the slopes. From (f–j), top series are for δ18Oc, while bottom series are for δ18Osw.
