Figure 10

From: Utilizing distributed acoustic sensing and ocean bottom fiber optic cables for submarine structural characterization

Figure 10

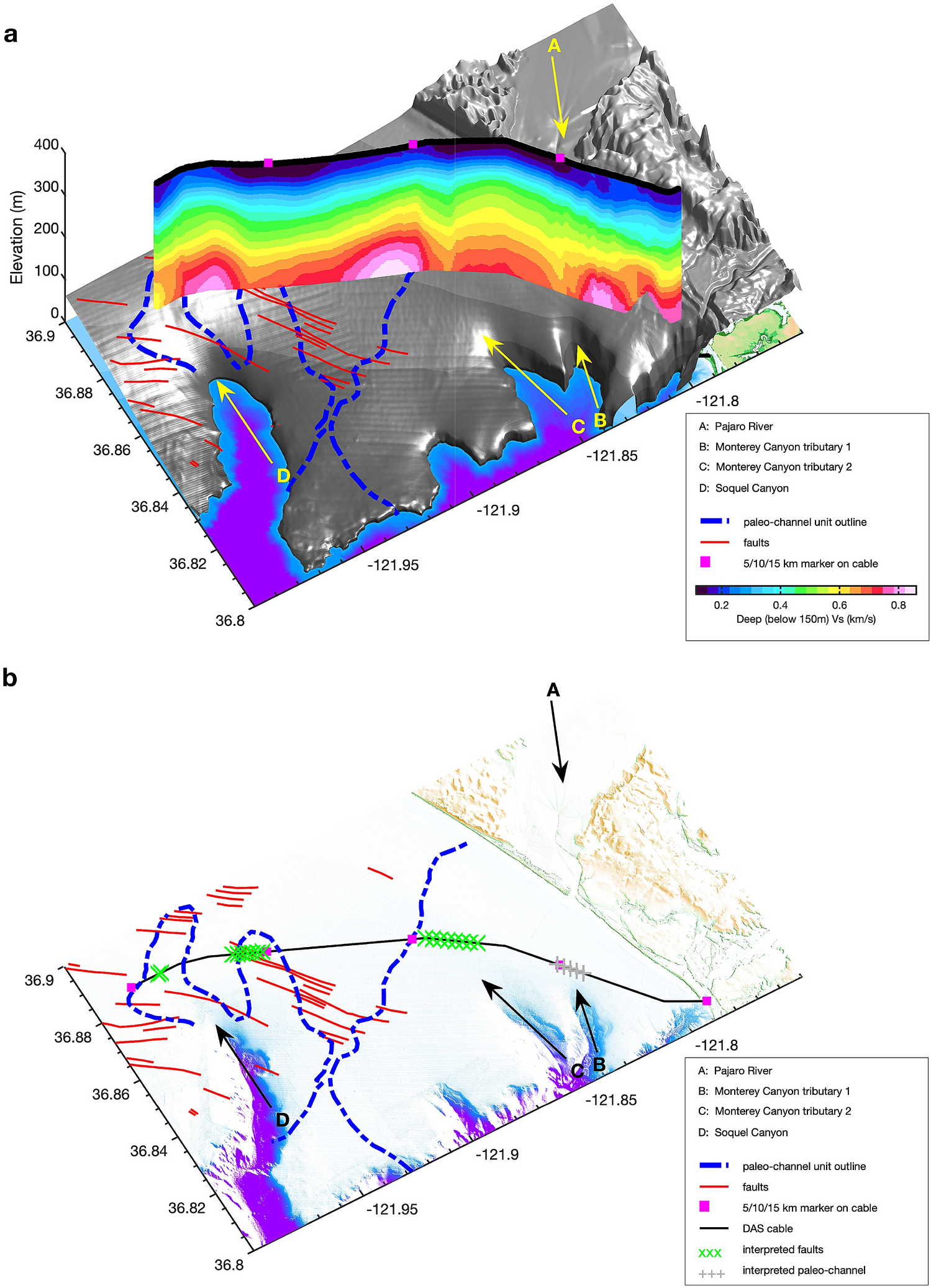

Integrated interpretation including submarine structural features. The vertical color image shows the inverted \(V_s\) profile (Fig. 6); three pink squares on the \(V_s\) profile indicate marks for cable locations (5 km, 10 km, 15 km); the red lines represent the mapped faults after68; the blue dashed lines indicate the outline of paleo-channel units obtained from37; text arrow A indicates the flow direction of Pajaro River; text arrow B and C annotate the tributary of the Monterey Canyon; text arrow D indicates the Soquel Canyon. The green crosses represent the interpreted fault zones around the cable; the gray crosses represented the interpreted paleo-channel unit.
