Figure 3
From: EMeth: An EM algorithm for cell type decomposition based on DNA methylation data

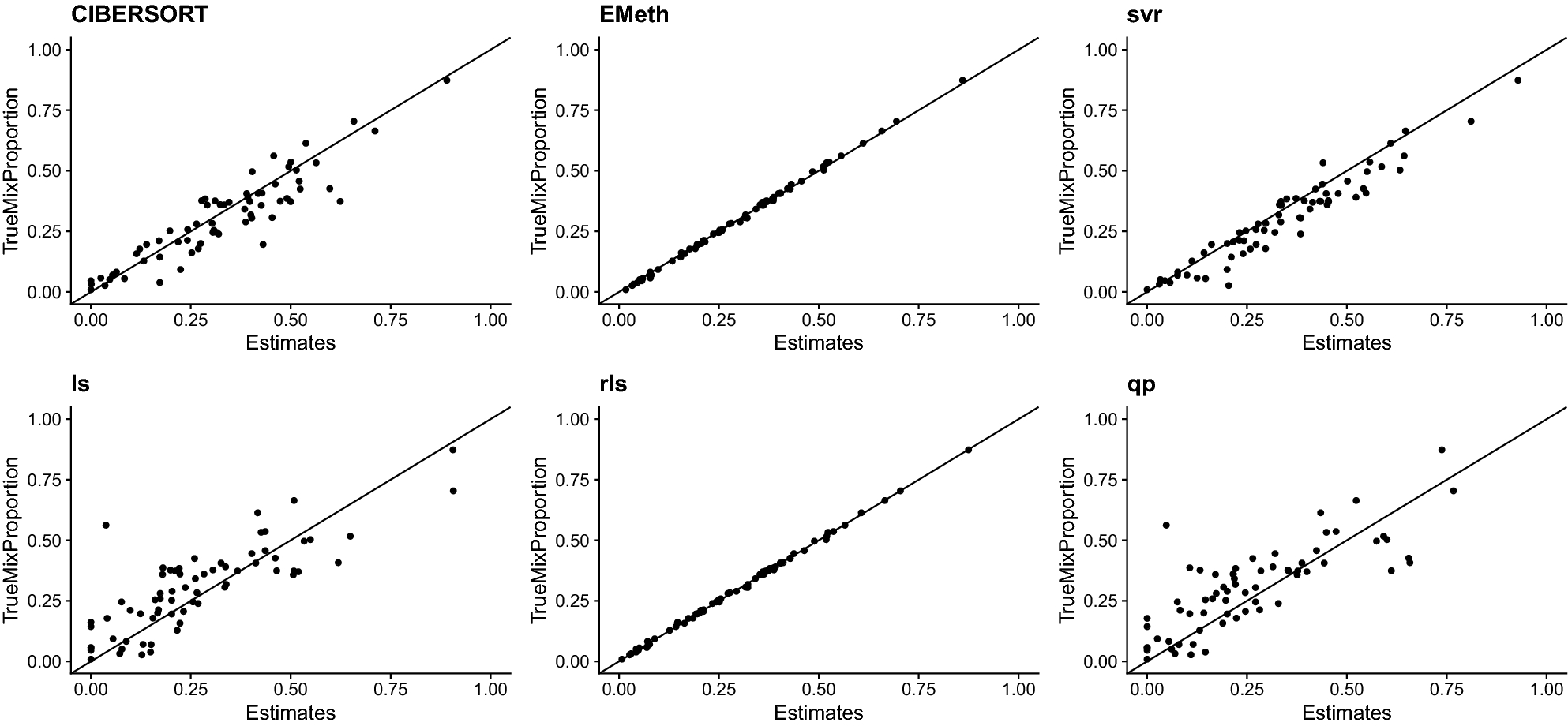

Evaluation of cell type proportion estimates for CD4 T cells using in silico mixtures. The y-axis is the true proportion of CD4 T cells for all 68 samples and the x-axis is the proportion estimates by six different methods. EMeth and RLS give very accurate estimates from methylation data and other methods provide reasonable but less accurate estimates. These plots were generated using R version 3.6.227.
