Figure 8
From: Interferometric measurements of refractive index and dispersion at high pressure

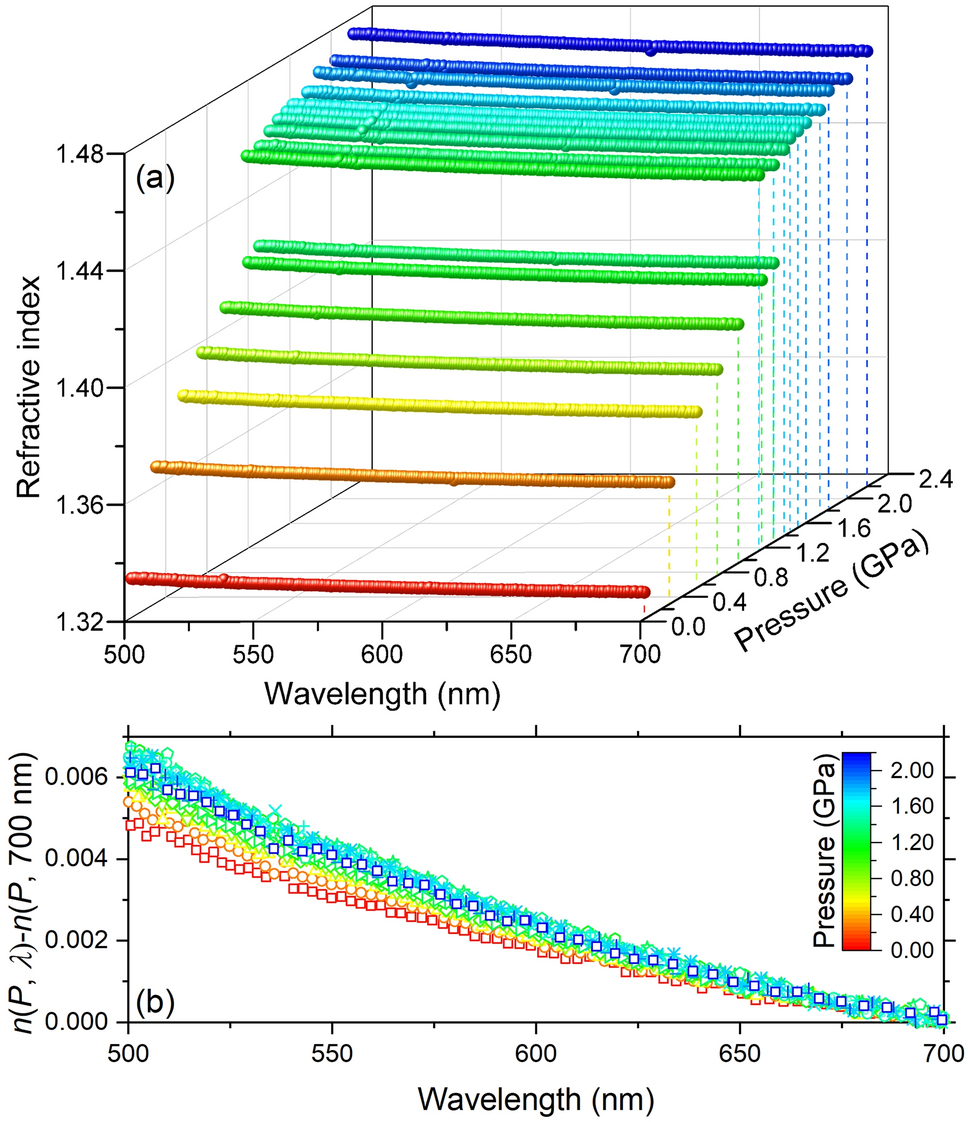

(a) 3-dimension plot of the refractive index in liquid water and ice VI as a function of wavelength and pressure. (b) The refractive index is normalized by subtracting the index at 700 nm to highlight the dispersion. The color scale represents the pressure levels on both panels (a,b).
