Figure 11
From: Influence of alkaline modification on selected properties of banana fiber paperbricks

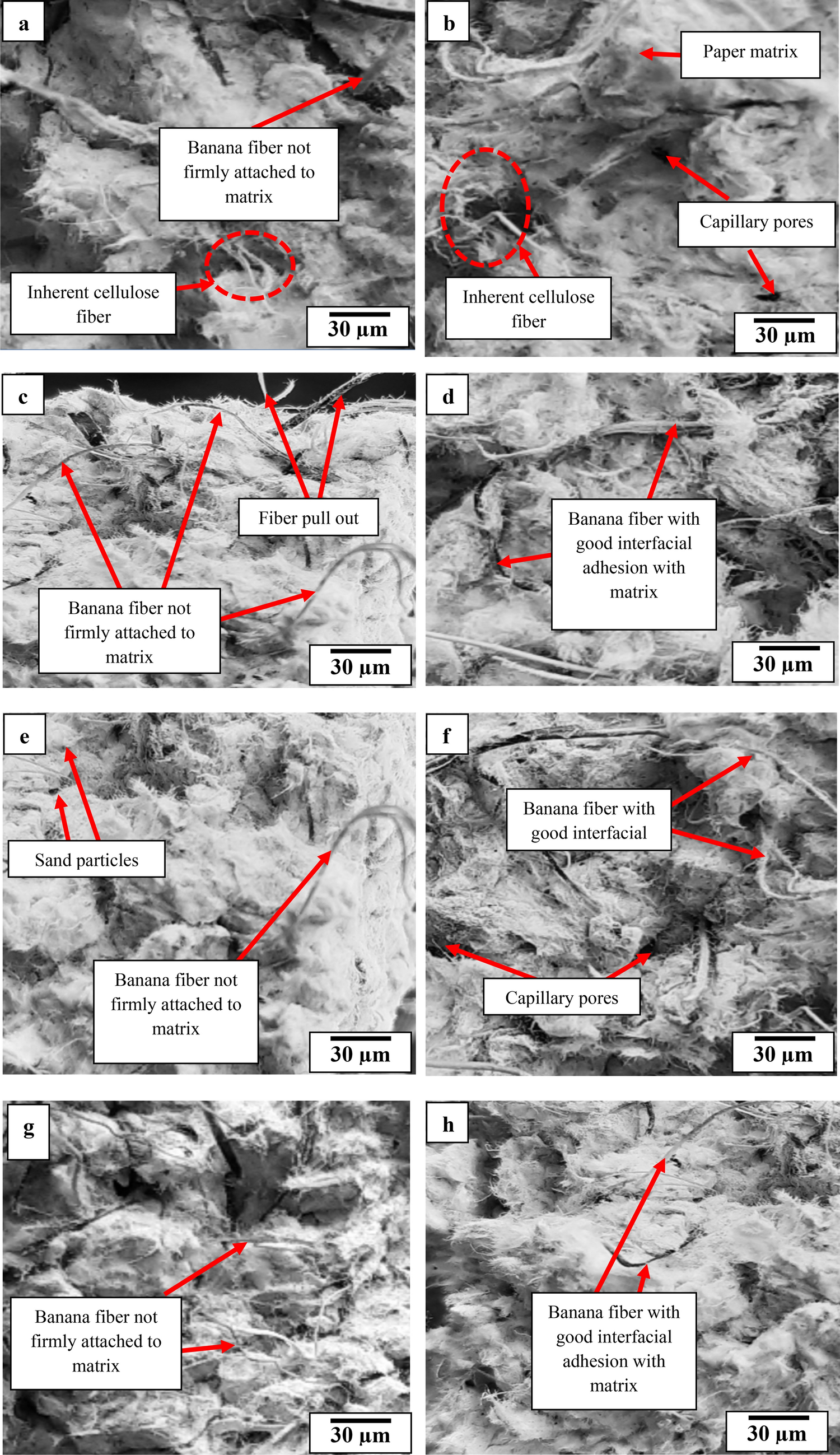

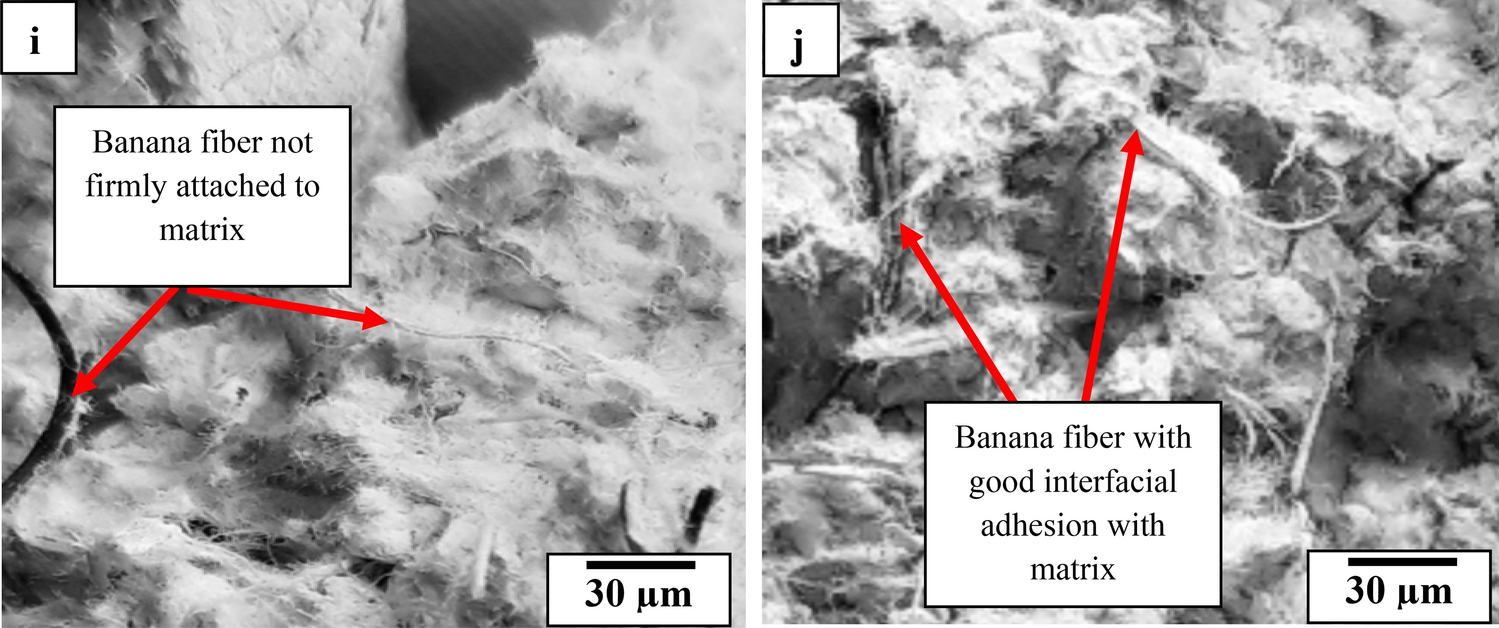

Scanning electron micrograph images of paperbricks (cured for 56 days) containing varying amount of unmodified banana fiber (0.5, 1.0, 1.5, 2.0, and 2.5 wt%) represented in (a,c,e,f,g,i) respectively and modified banana fiber (0.5, 1.0, 1.5, 2.0, and 2.5 wt%) represented in (b,d,f,h,j).
