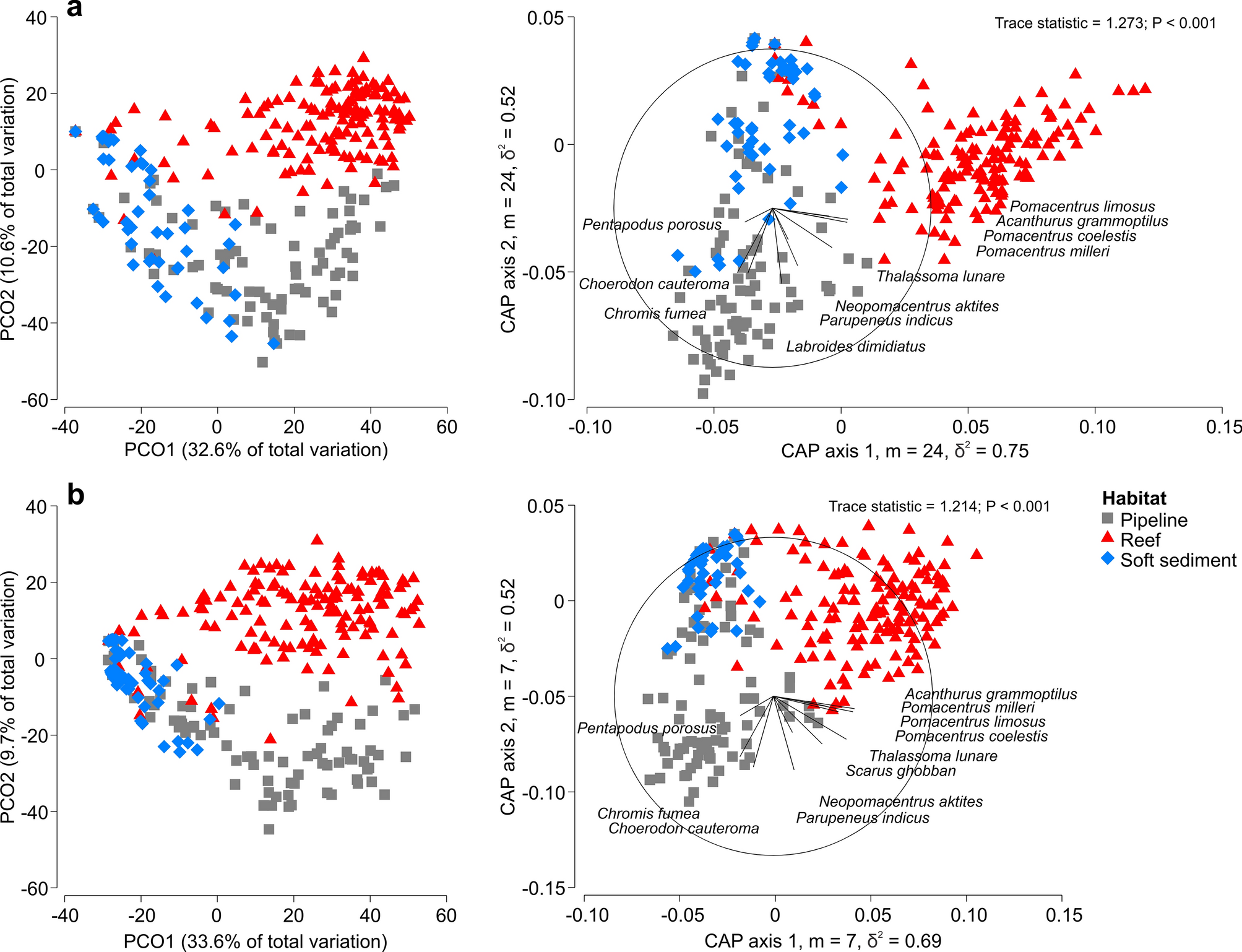

Principal Coordinates Analysis (PCO) and Canonical Analysis of Principal Coordinates (CAP) plots for the abundance (a) and biomass (b) of the observed fish assemblage with SIMPER species overlay showing the differences between habitats: pipeline, reef, and soft sediment. Ordinations are based on four root transformations and Bray Curtis similarities (generated using PRIMER 7 v7, https://www.primer-e.com/).
