From: Fish associations with shallow water subsea pipelines compared to surrounding reef and soft sediment habitats

Figure 8

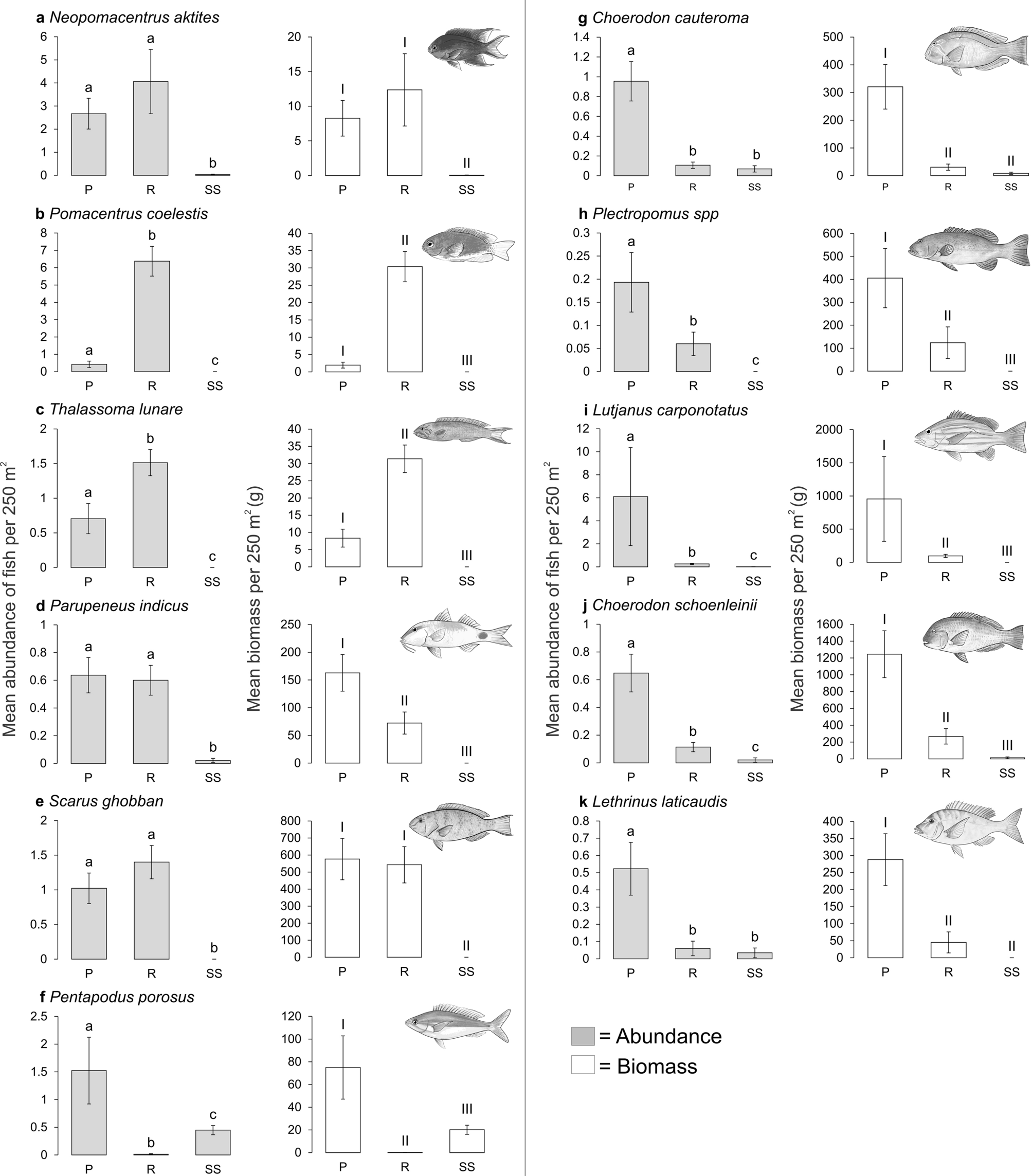

Mean (± SE) abundance and biomass of Neopomacentrus aktites (a), Pomacentrus coelestis (b), Thalassoma lunare (c), Parupeneus indicus (d), Scarus ghobban (e), Pentapodus porosus (f) Choerodon cauteroma (g), Plectropomus spp. (h), Lutjanus carponotatus (i), Choerodon schoenleinii (j), Lethrinus laticaudis (k) among habitats: pipeline (P), reef (R), soft sediment (SS). Statistically similar means are indicated by the same letter for abundance (e.g. a), and roman numerals for biomass (e.g. I) (generated using Microsoft Excel v16.0.5122.1000, https://www.microsoft.com/).
