Figure 5

From: Comparison of Plasmodium ovale curtisi and Plasmodium ovale wallikeri infections by a meta-analysis approach

Figure 5

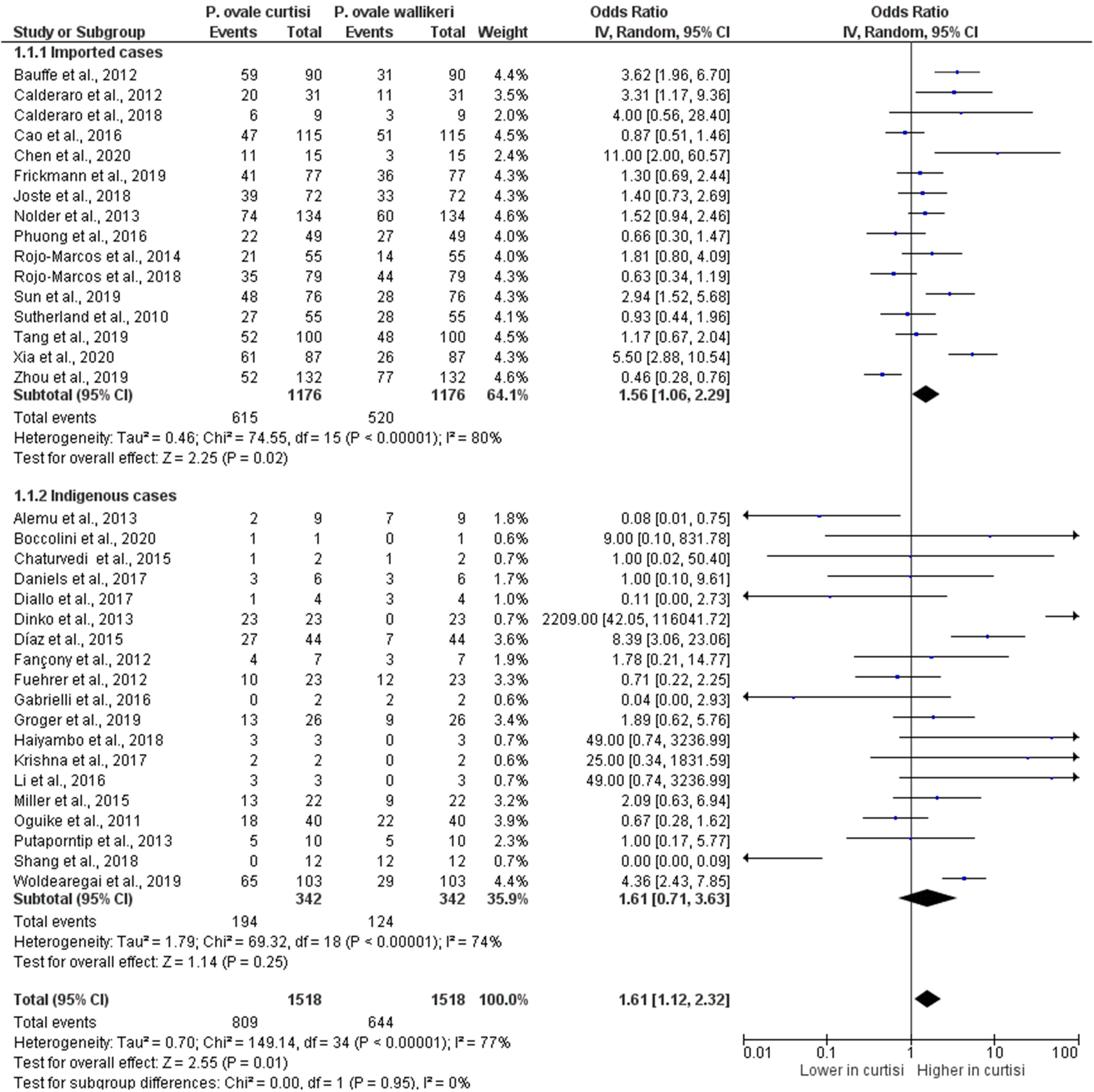

The difference in proportion between P. ovale curtisi and P. ovale wallikeri malaria among imported and indigenous cases. IV inverse variance, CI confidence interval, Event Number of P. ovale curtisi or P. ovale wallikeri cases, Random random-effects model, Total number of all P. ovale spp. cases, Lower in curtisi: The proportion of P. ovale curtisi cases was lower than that of P. ovale wallikeri cases. Higher in curtisi: The proportion of P. ovale curtisi cases was higher than that of P. ovale wallikeri cases.
