Figure 10
From: Estimating the phase volume fraction of multi-phase steel via unsupervised deep learning

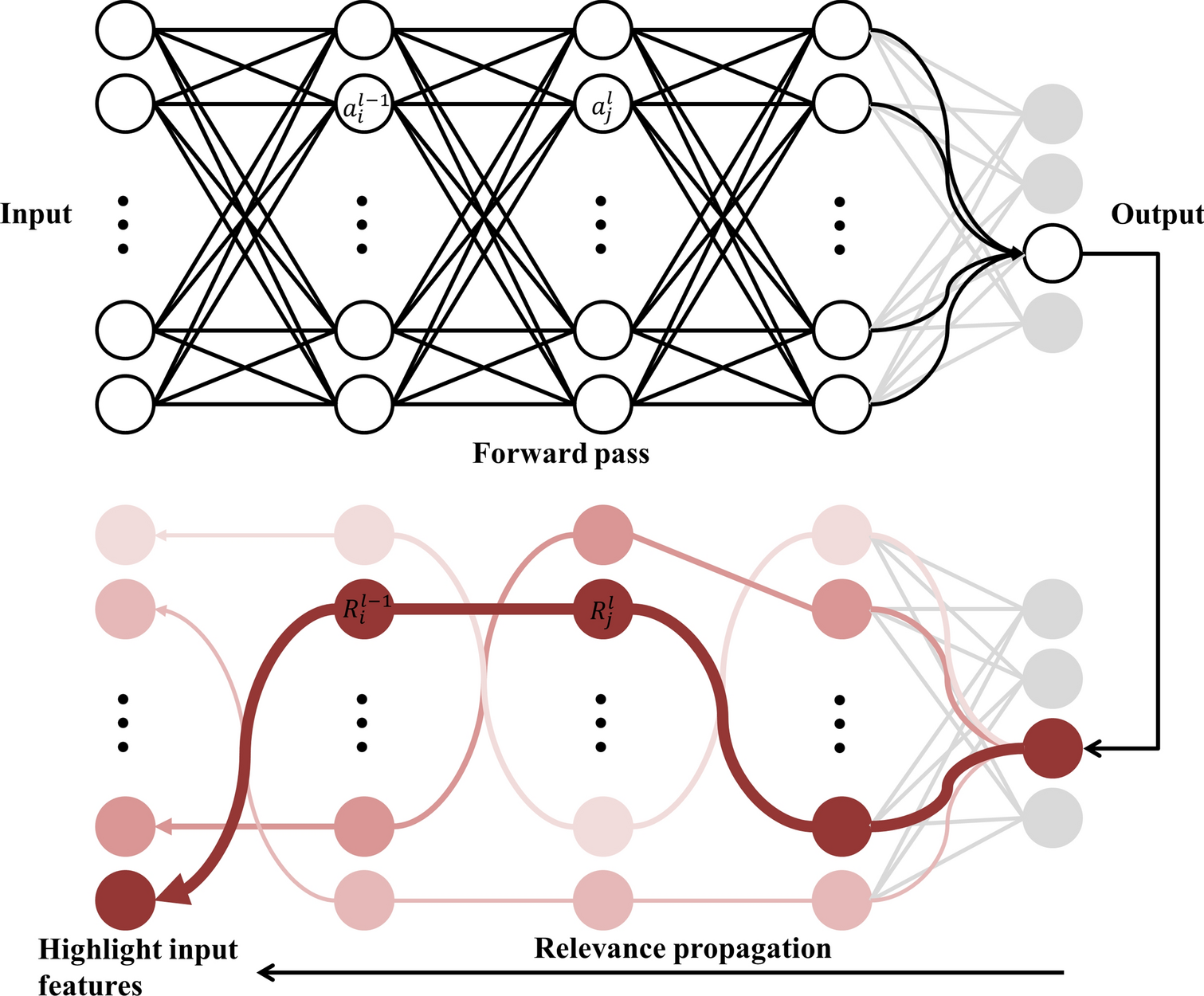

Schematic diagram showing the general process of LRP. Starting from the output from a trained MLP, the relevance score is distributed backward. The input feature from the leftmost layer that is assigned the highest relevance score is colored in dark red.
