Figure 10
From: Physical simulation for water invasion and water control optimization in water drive gas reservoirs

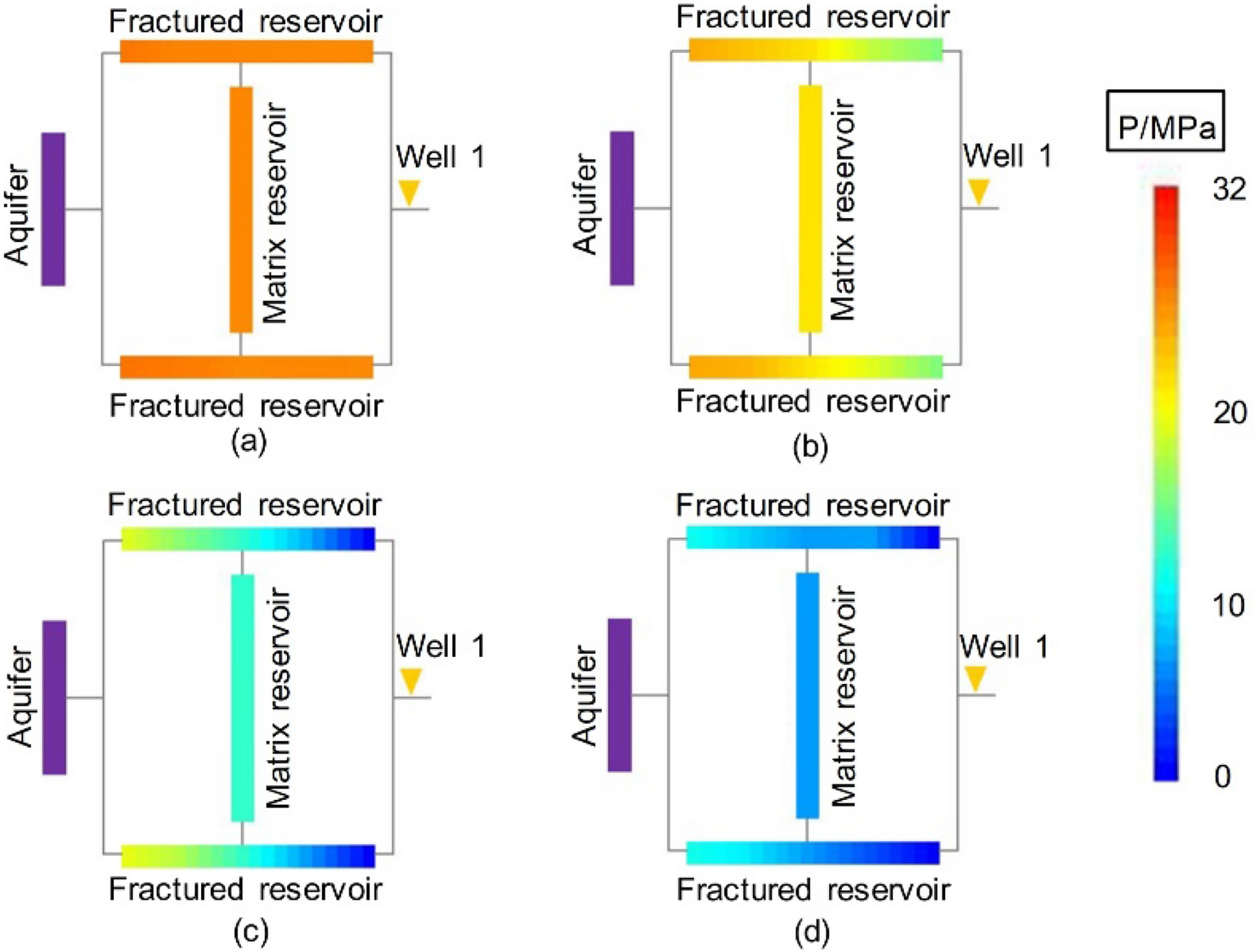

Pressure distributions at different stages of Experiment 1-3: (a) early stage of production—10 min, (b) early stage of production—20 min, (c) end of the stabilized period—32 min, and (d) production halts—115 min.
