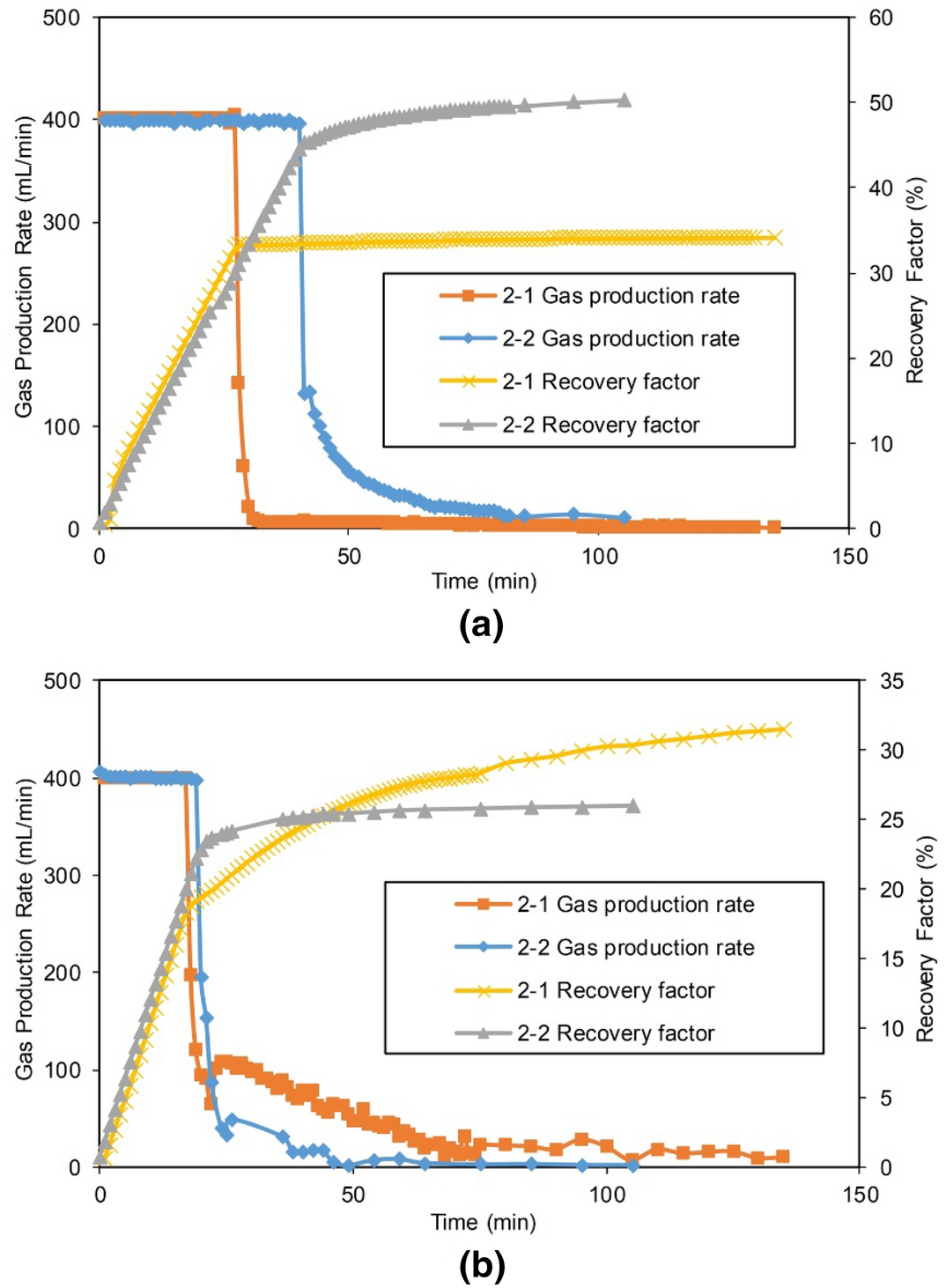

Figure 12
From: Physical simulation for water invasion and water control optimization in water drive gas reservoirs
Gas production of two wells in Experiments 2-1 and 2-2: (a) gas production of Well 1 located in the MZ, and (b) gas production of Well 2 located in the FZ.
