Figure 15
From: Physical simulation for water invasion and water control optimization in water drive gas reservoirs

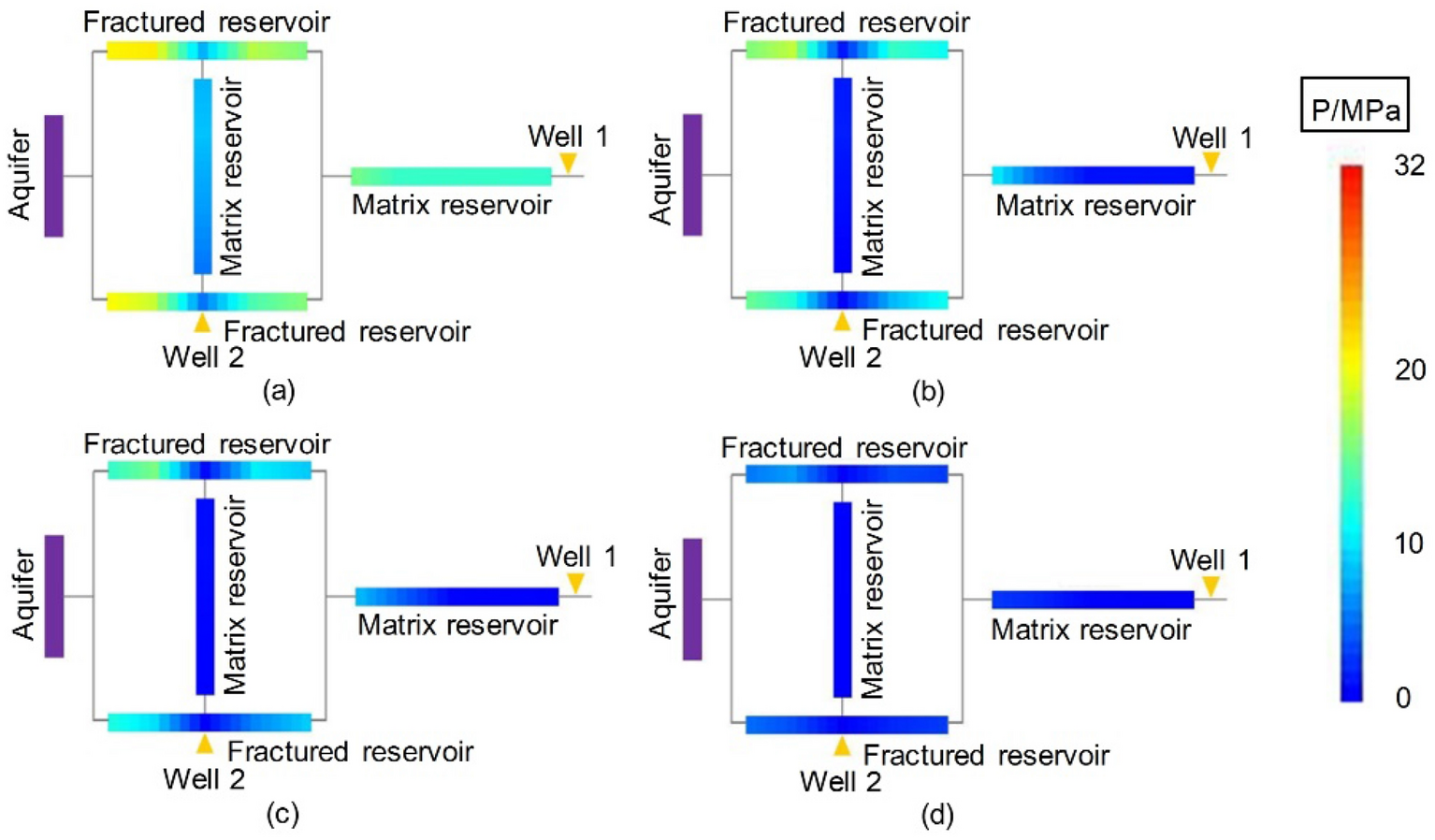

Pressure distributions at different stages of Experiment 2-1 (Well 2 is at Point A): (a) produced for 10 min, (b) produced for 20 min, (c) produced for 30 min, and (d) gas reservoir production halted at 135 min.
