Figure 3
From: Physical simulation for water invasion and water control optimization in water drive gas reservoirs

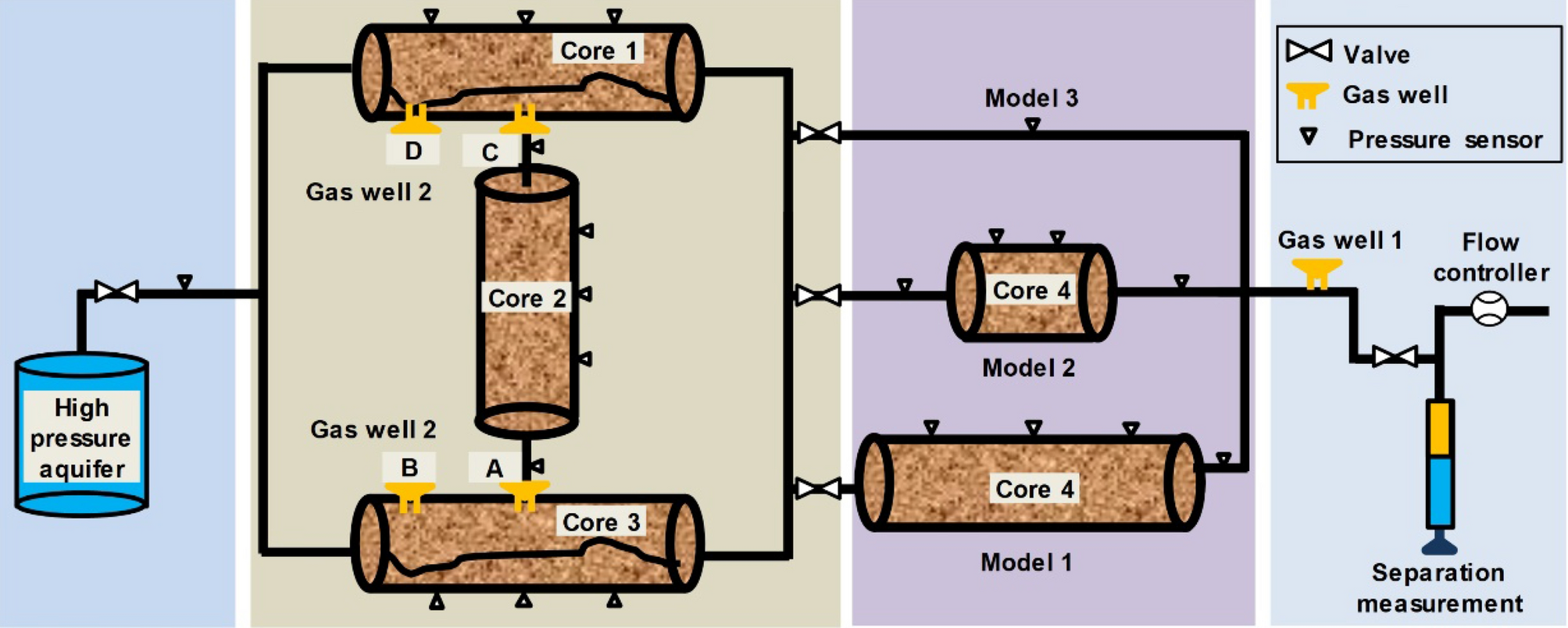

Schematic diagram of the joint water-control experiments (three geological models, Well 2 at points A/B/C/D).
Figure 3 | Scientific Reports
