Figure 7
From: Physical simulation for water invasion and water control optimization in water drive gas reservoirs

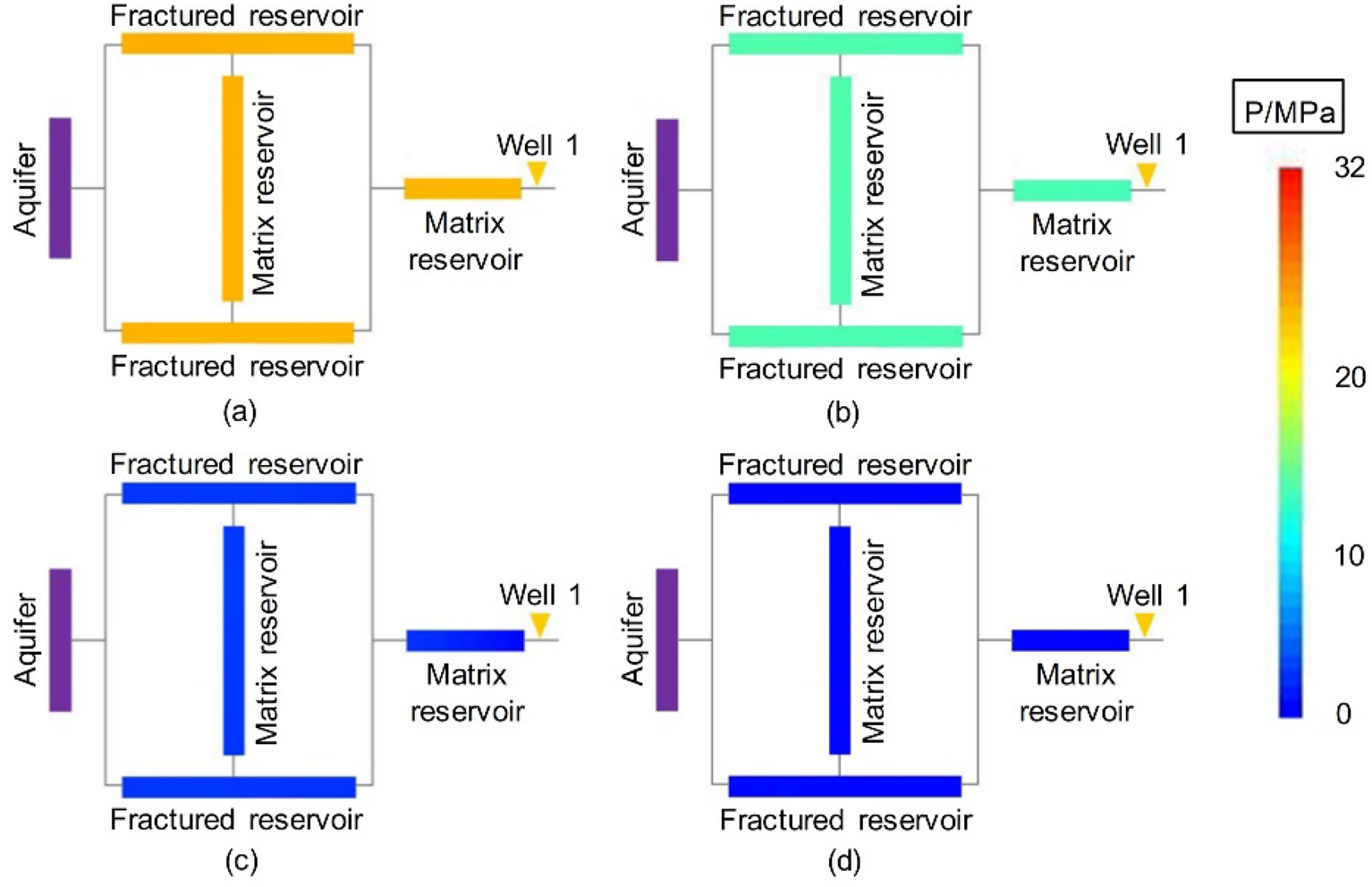

Pressure distributions at different stages of Experiment 4-2: (a) early stage of production – 10 min, (b) early stage of production—30 min, (c) end of the stabilized period—55 min, and (d) production halts—88 min.
