Figure 3

From: Determination of Dy substitution site in Nd2−xDyxFe14B by HAADF-STEM and illustration of magnetic anisotropy of “g” and “f” sites, before and after substitution

Figure 3

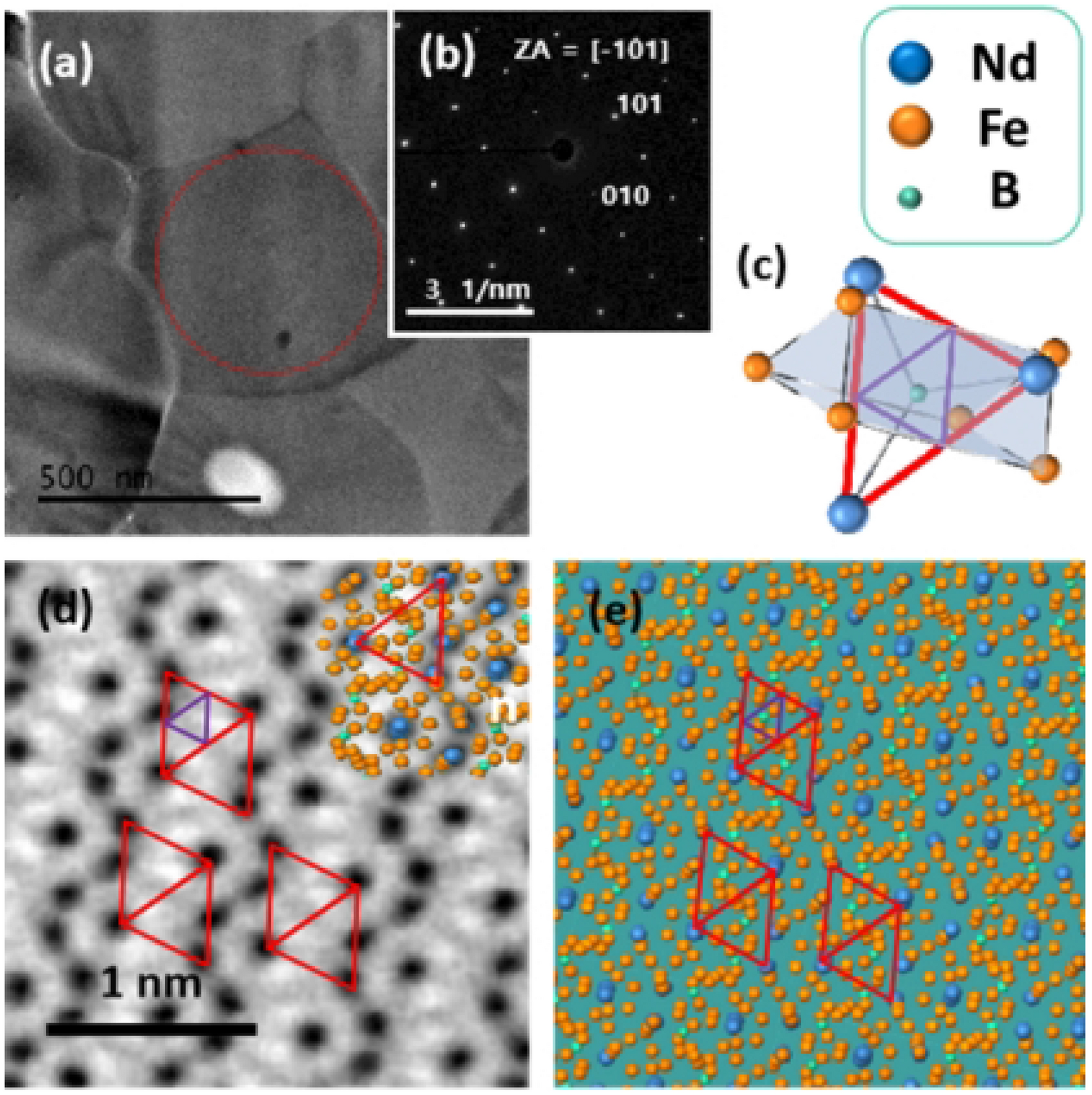

(a) TEM image of the Nd1.5Dy0.5Fe14B, (b) SAED pattern taken from the red circle in (a), (c) Nd2Fe14B trigonal prism in the [− 101] viewing zone axis, (d) high resolution BF-STEM image of Nd1.5Dy0.5Fe14B at [− 101] zone axis and (e) simulation of arrangement of the atoms by JEMS software.
