Figure 6

From: Determination of Dy substitution site in Nd2−xDyxFe14B by HAADF-STEM and illustration of magnetic anisotropy of “g” and “f” sites, before and after substitution

Figure 6

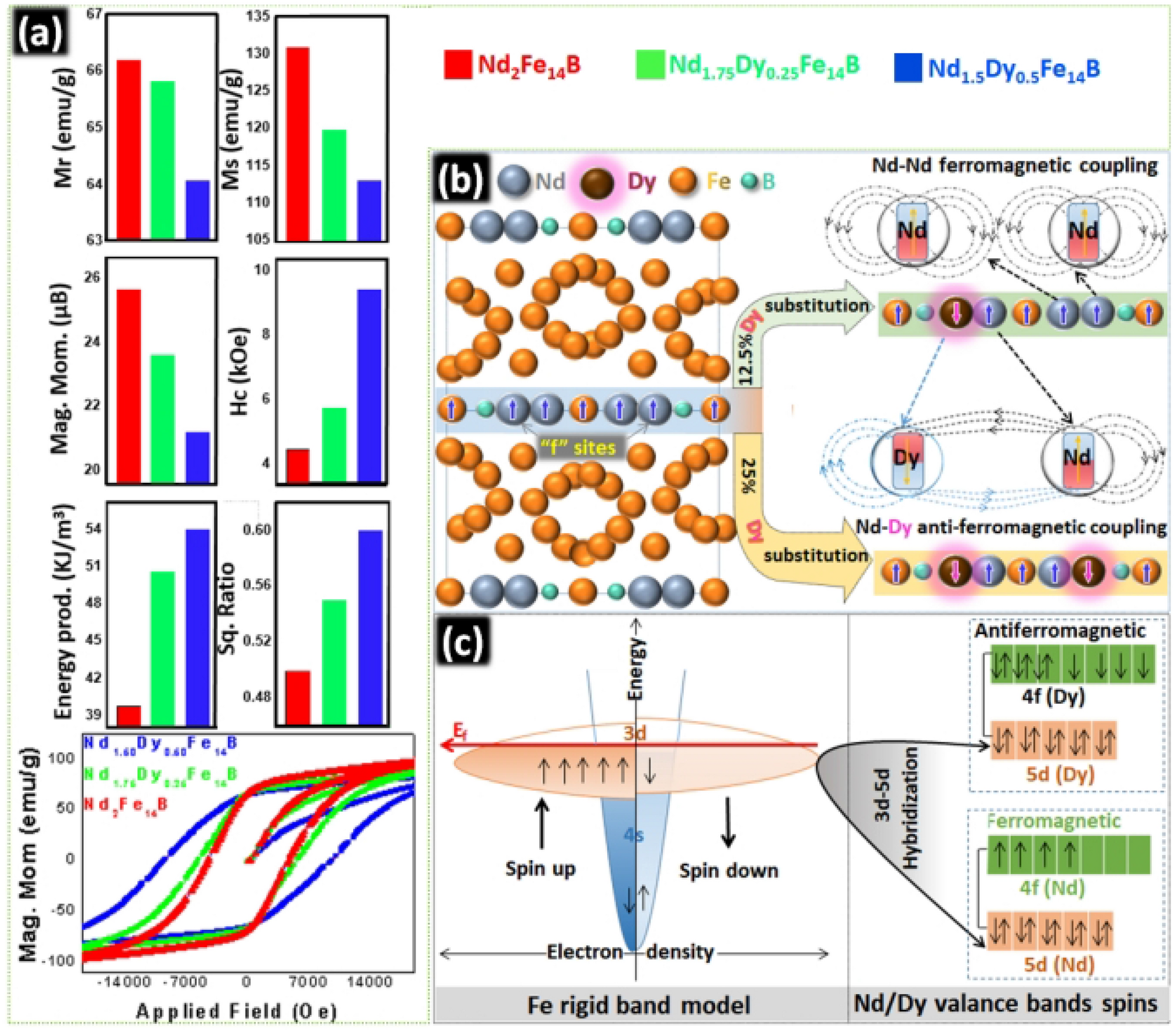

(a) M–H curves, Mr, Ms, Magnetic moment, Hc, energy density and squareness ratio of Nd2Fe14B, Nd1.75Dy0.25Fe14B and Nd1.5Dy0.5Fe14B particles. (b) Schematic illustration to explain the ferro and anti-ferromagnetic coupling between Nd, Dy and Fe (c) Explanation of coupling and hybridization between Nd, Dy and Fe.
