Figure 4
From: Transcriptome analysis of the effect of diosgenin on autoimmune thyroiditis in a rat model

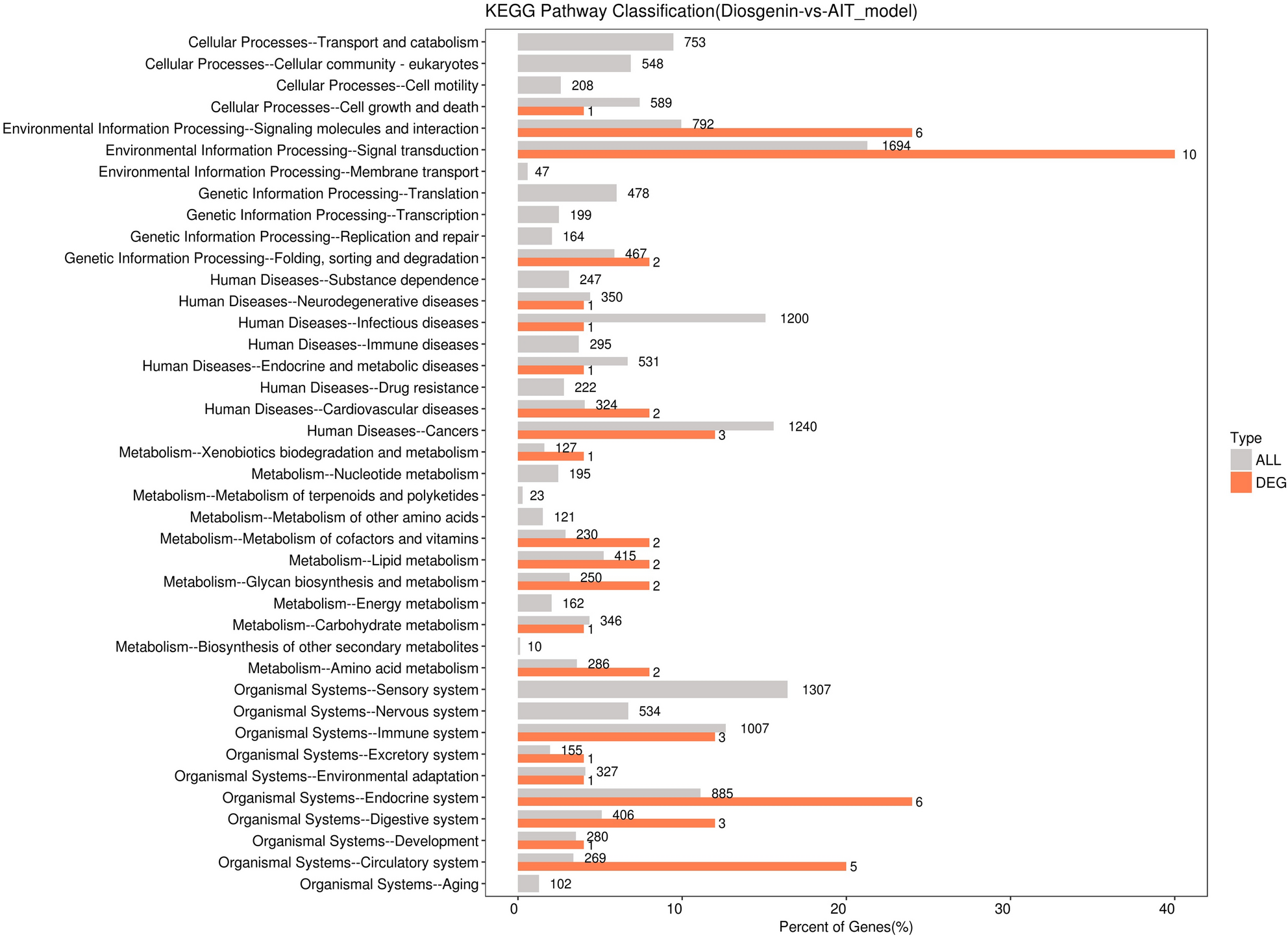

Comparison of differentially expressed genes (DEGs) and horizontal distribution of all genes in KEGG Level2. Photo caption: The horizontal axis is the ratio (%) of the total number of genes annotated to each Level2 metabolic pathway (DEGs) and all genes annotated to KEGG pathway (DEGs), the vertical axis represents the name of the Level2 pathway, and the number on the right side of the column represents the number of DEGs annotated to this Level2 pathway.
