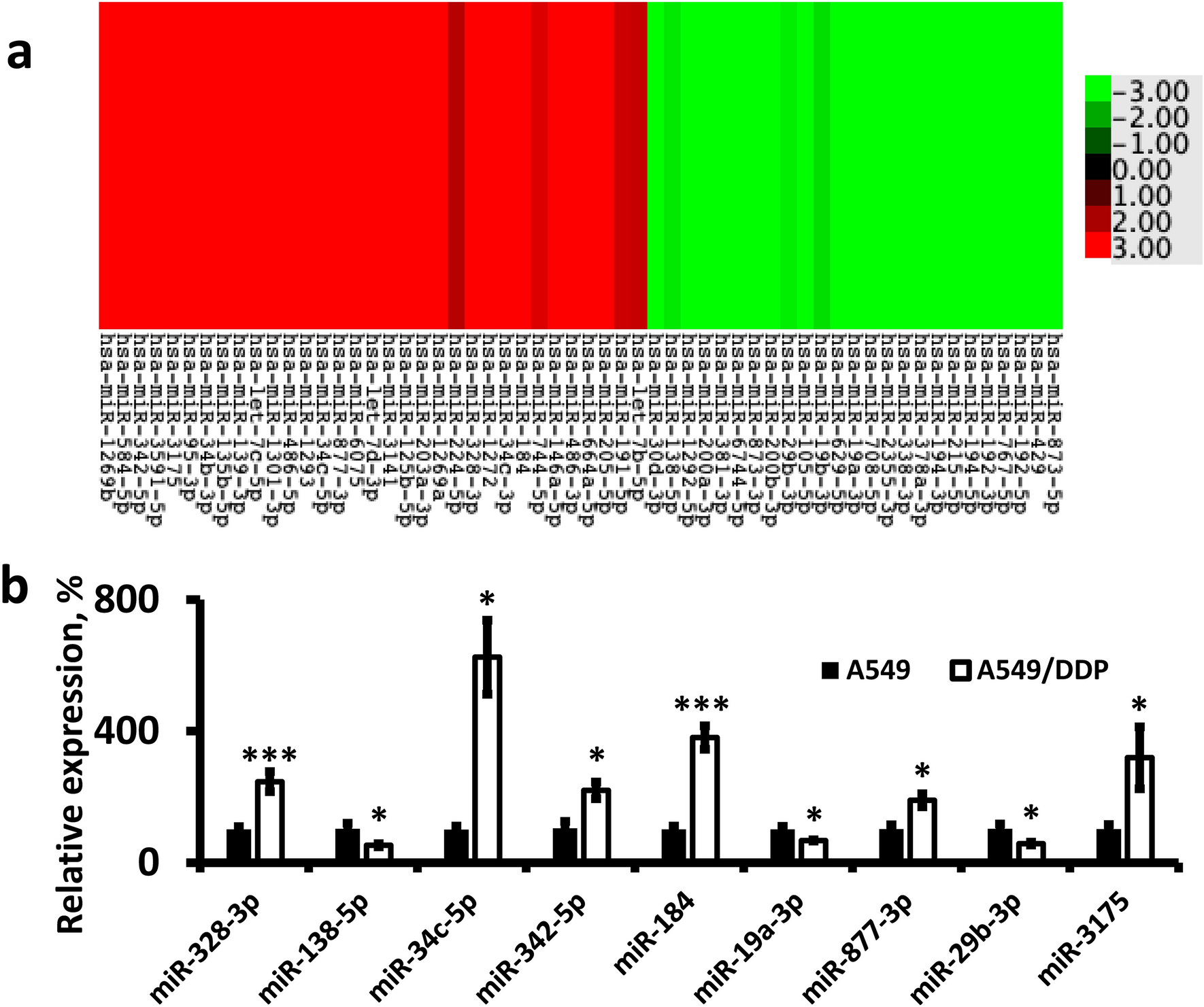

Figure 2
From: Advanced bioinformatic analysis and pathway prediction of NSCLC cells upon cisplatin resistance
Heatmap of significantly up- and down- regulated miRNAs and representative qPCR analysis of miRNAs. (a) Heatmap of differential gene expression, as calculated through RNA-seq of samples extracted from A549 and A549/DDP cells; (b) qPCR analysis of representative miRNA expressions. *p < 0.05; ***p < 0.001 for A549/DDP compared to A549.
