Figure 1
From: Antibacterial activity testing methods for hydrophobic patterned surfaces

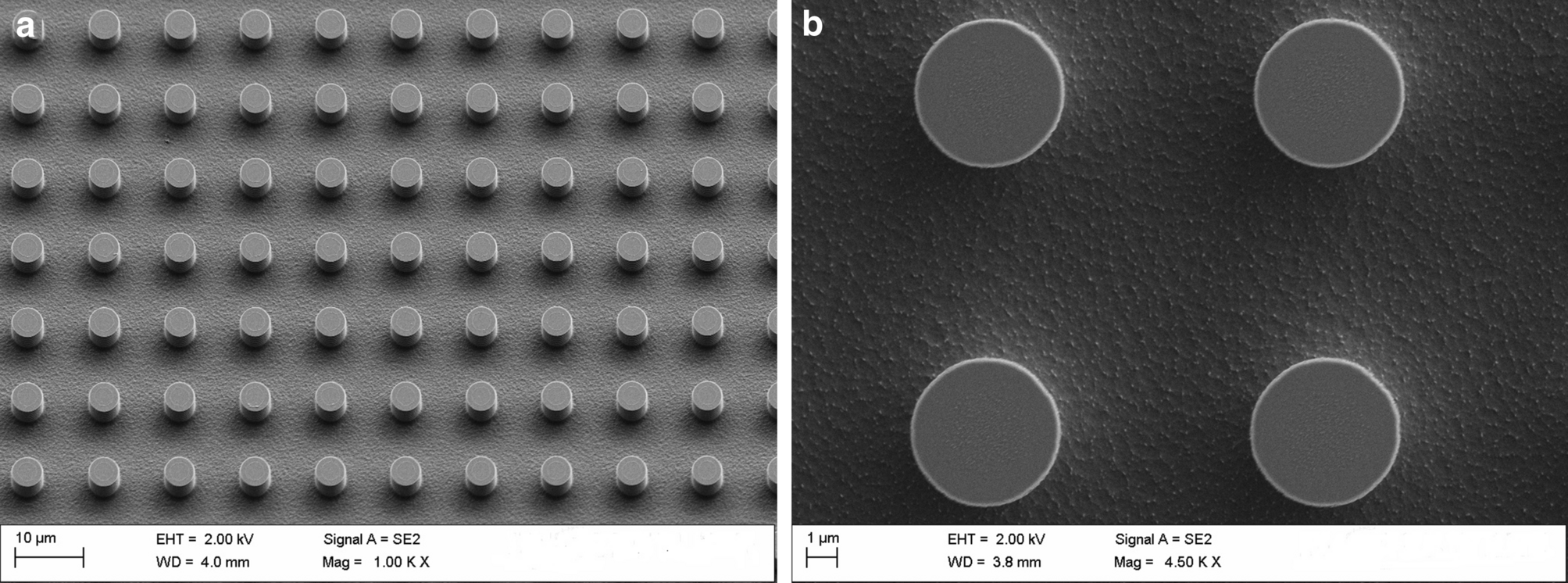

Topography of the structured films: 5 μm diameter micropillars fabricated on a PP substrate (left; 10 µm scale), where the roughness they show at the bottom corresponded to the presence of nanospikes (right; 1 µm scale).
