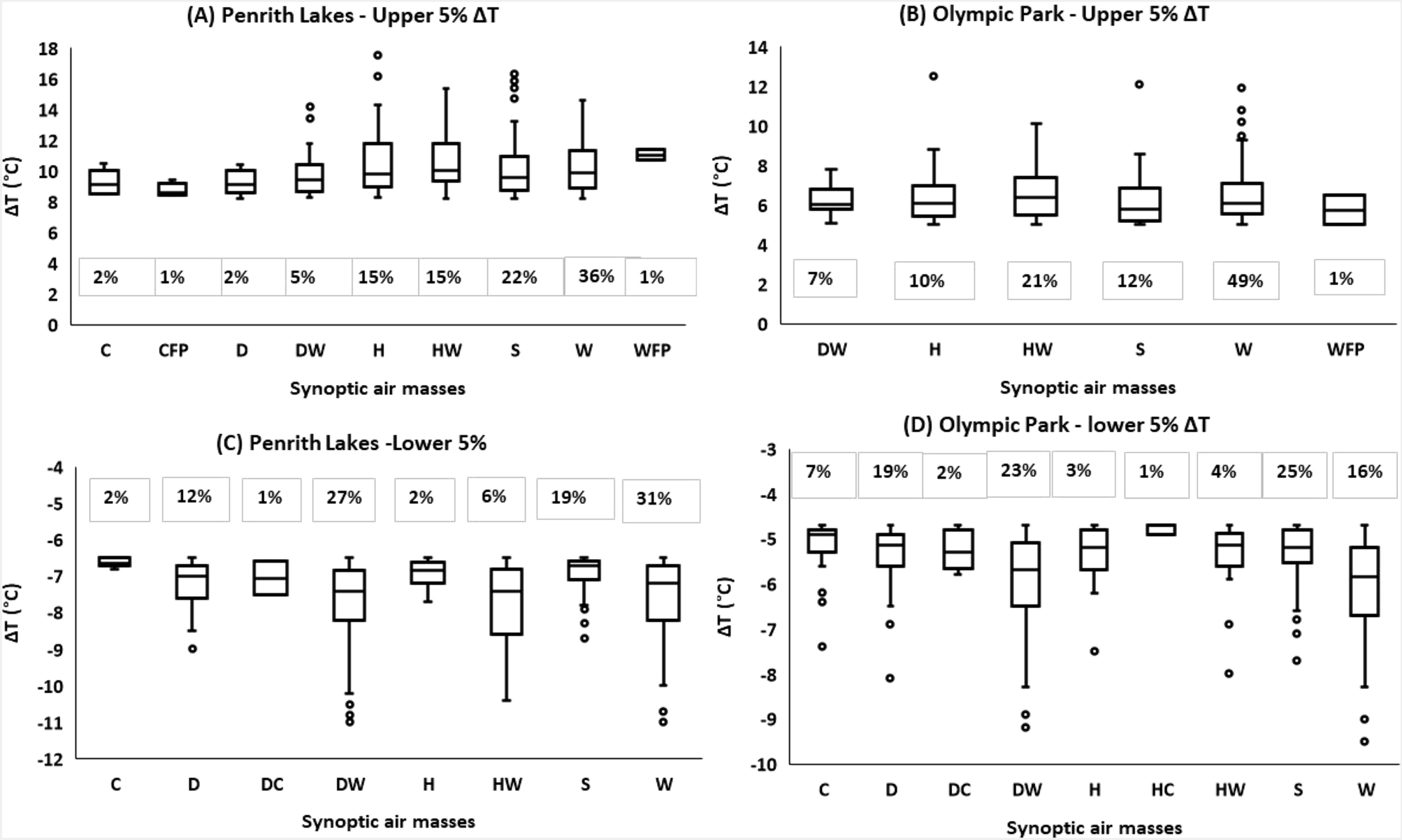

Figure 4

Higher 5% (UO) and lower 5% (UC) ΔT at different Sydney sites under different synoptic air-masses. (A) UO at Penrith Lakes, (B) UO at Olympic Park (C) UC at Penrith Lakes, (D) UC at Olympic Park. The boxplots are plotted according to the general convention (upper and lower extremes: Q1-1.5*IQR and Q3 + 1.5*IQR).
