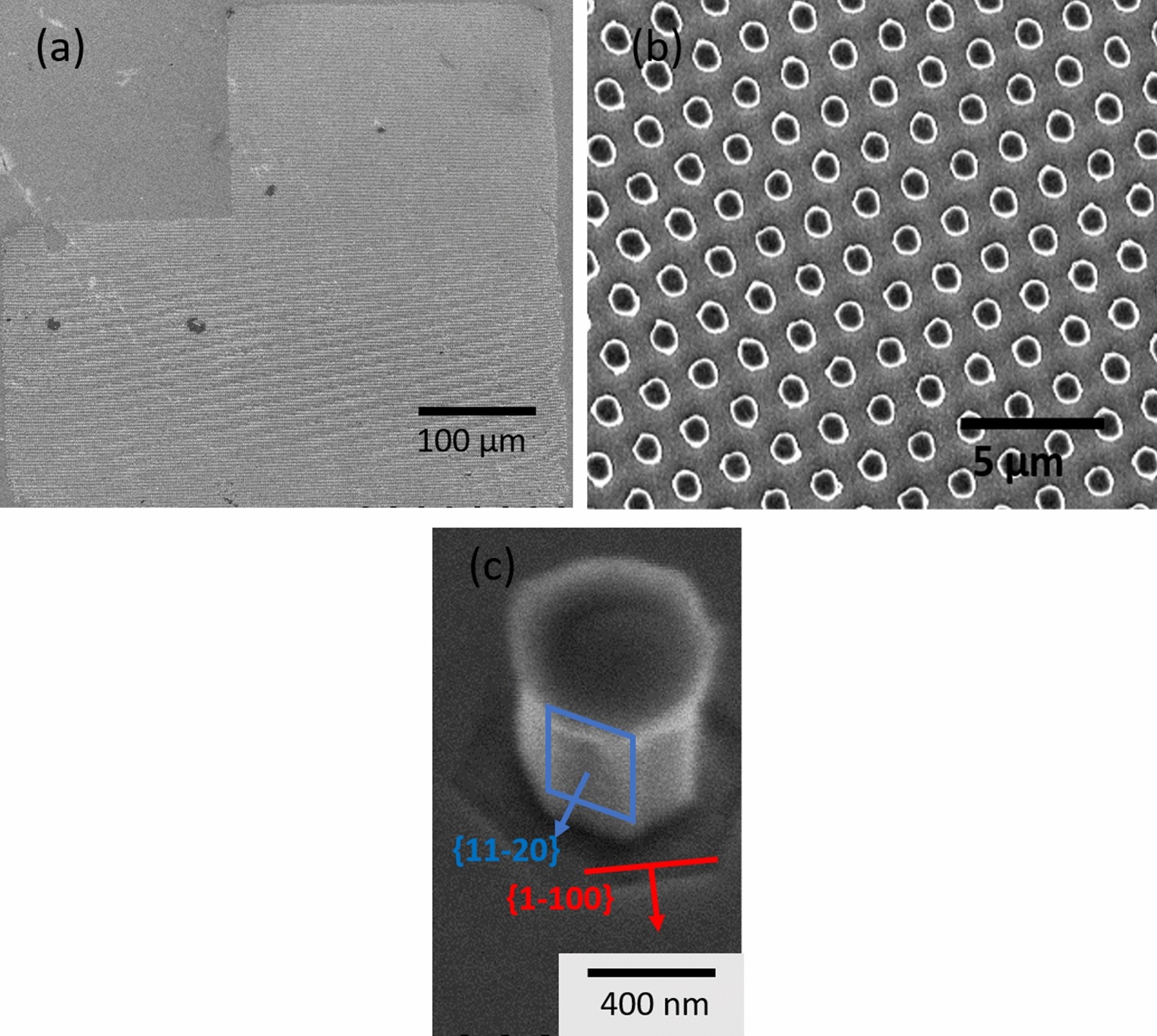

Figure 2

(a) 450 um large L-shape mesa of GaN NRds with threefold InGaN/GaN axial MQWs insertions. (b) Higher magnification. (c) SEM Image showing nanorods {1–100} facets after RIE-ICP dry etching (in red) and {11–20} facets after wet etching (in blue).
