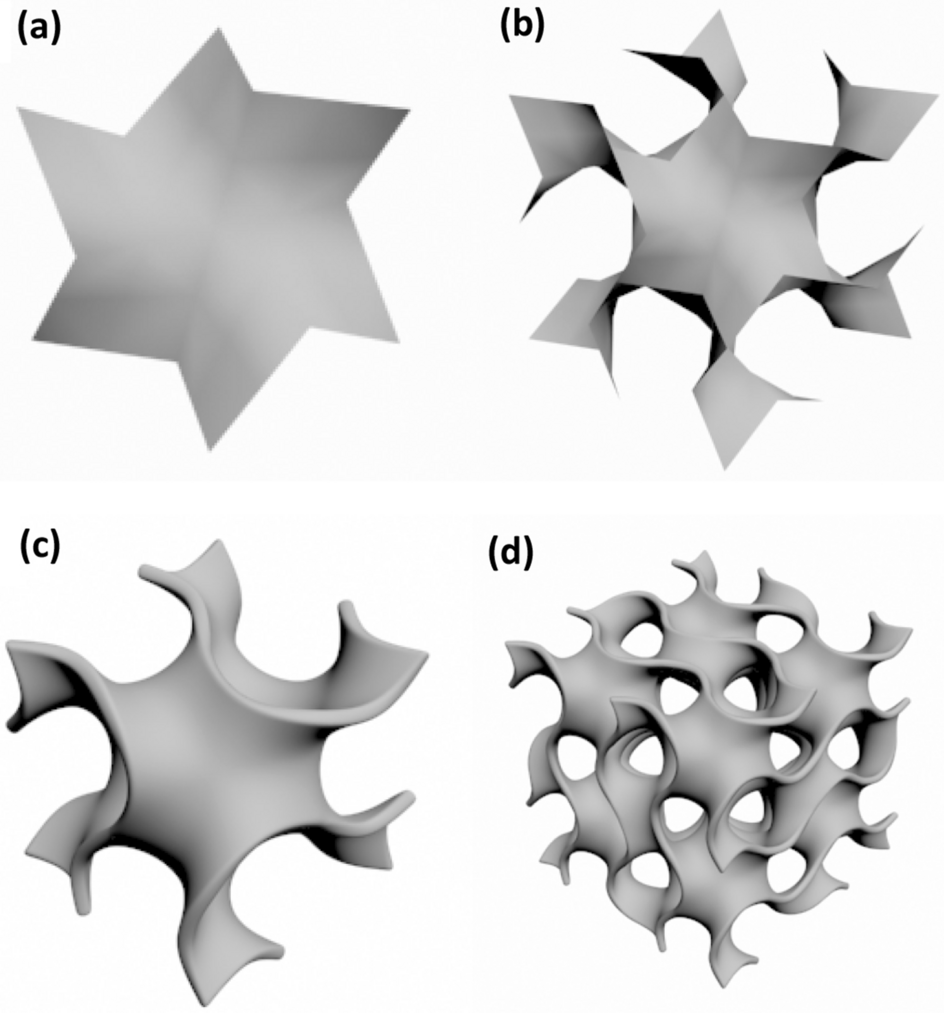

Figure 8

The model of compression sample: (a) hexagonal surface; (b) hexagonal surface was mirrored, copied, rotated and spliced; (c) surface of the unit surface piece was smoothed; (d) the element body was arrayed to obtain Gyroid minimal surface element body.
