Figure 4
From: Armillaria root rot fungi host single-stranded RNA viruses

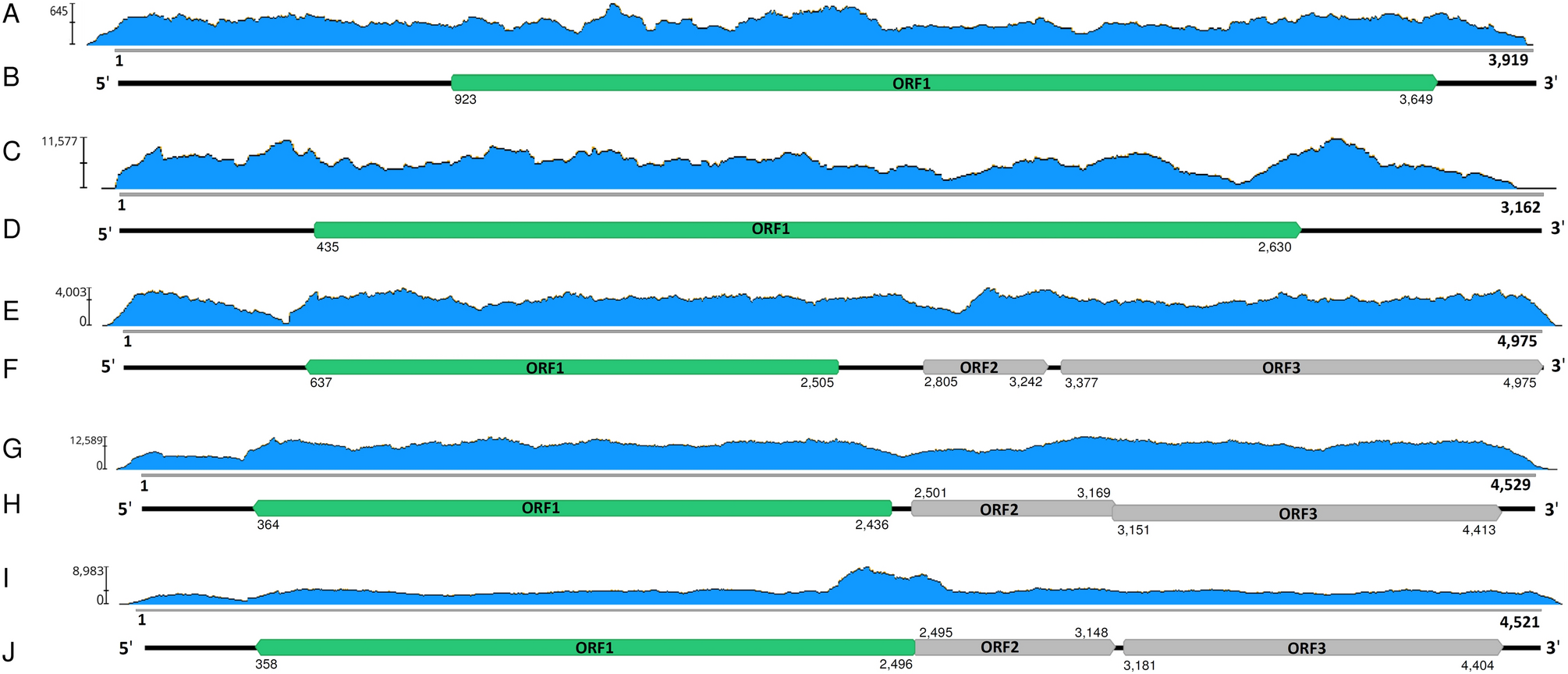

Genome organization of the Armillaria ourmia-like and ambi-like viruses. (A) Coverage of raw reads mapped against the Armillaria mellea ourmia-like virus 1 (AmOlV1) genome. (B) Schematic presentation of AmOlV1 genome with UTRs and predicted ORFs. (C) Coverage of raw reads mapped against the Armillaria mellea ourmia-like virus 2 (AmOlV2) genome. (D) Schematic presentation of AmOlV2 genome with UTRs and predicted ORFs. (E) Coverage of raw reads mapped against the Armillaria borealis ambi-like virus 1 (AbAlV1) genome hosted by isolate N40. (F) Schematic presentation of AbAlV1 genome with UTRs and predicted ORFs. (G) Coverage of raw reads mapped against the Armillaria borealis ambi-like virus 2 (AbAlV2) genome hosted by isolate N40. (H) Schematic presentation of AbAlV2 genome with UTRs and predicted ORFs. (I) Coverage of raw reads mapped against the Armillaria sp. ambi-like virus 3 (AsAlV3) genome hosted by isolate N40. (J) Schematic presentation of AsAlV3 genome with UTRs and predicted ORFs. Predicted translation initiation and termination sites are marked above or below each ORF. Predicted RdRPs coloured with green hue.
