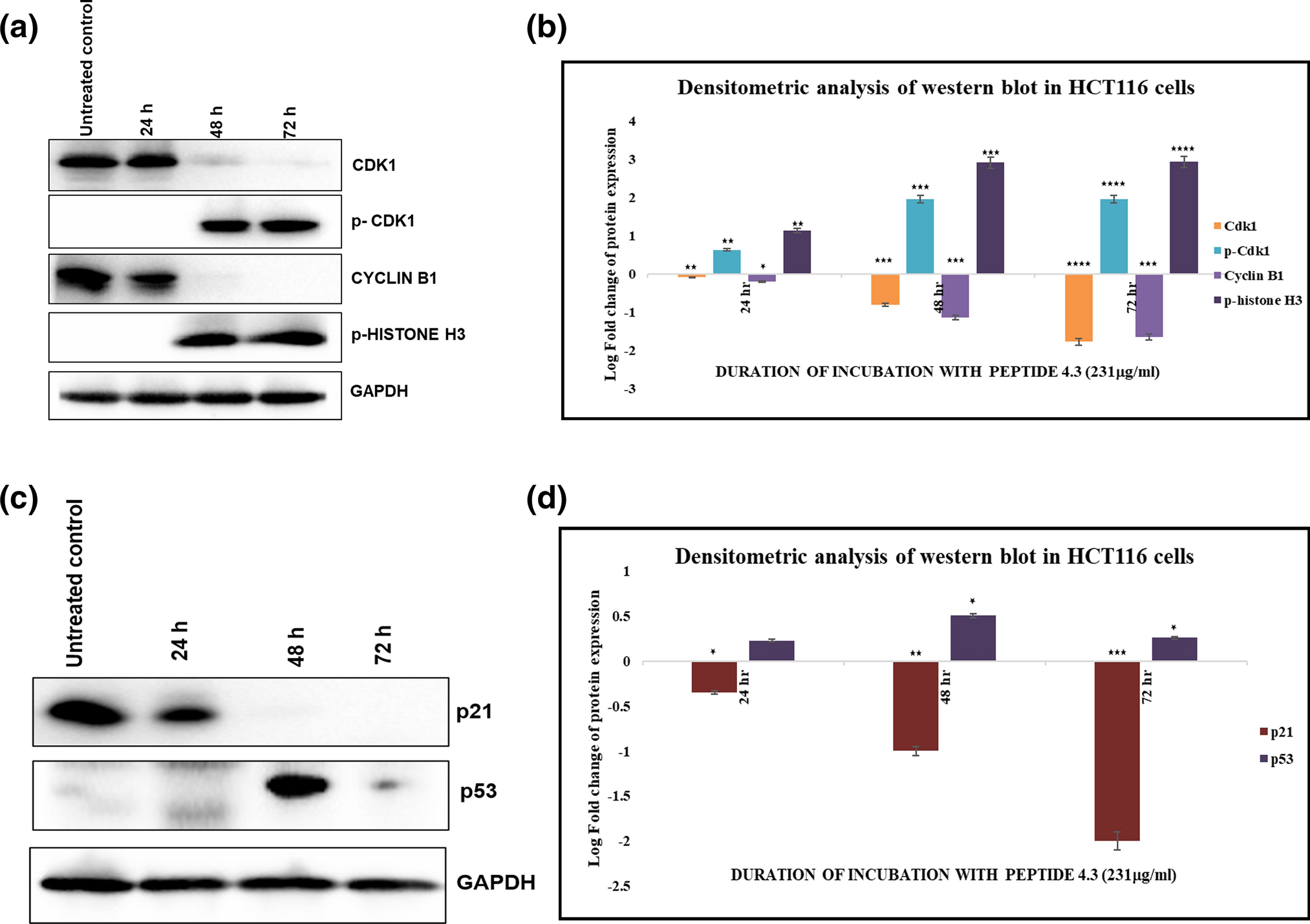

Figure 2
From: Camel whey protein hydrolysates induced G2/M cellcycle arrest in human colorectal carcinoma
Inhibitory effect of CWPH P-4.3 on cell cycle progressive markers in HCT116 cells. (a, c) Western blot analysis of cell cycle regulatory proteins from HCT116 treated with CWPH P-4.3 (231 μg/ml) over a period of 24 h, 48 h and 72 h. (b, d) Each band intensity was quantified to analyze the protein expression using ImageJ, normalized relative to their respective loading control bands. Values are expressed as ratio of untreated control in log fold. Statistical analysis was carried out by student’s t-test using GraphPad Prism software and p < 0.05 was considered as statistically significant. *p < 0.05, **p < 0.01, ***p < 0.001 and ****p < 0.0001.
