From: Reactive transport modelling of an intra-basalt sandstone reservoir, Rosebank, UK

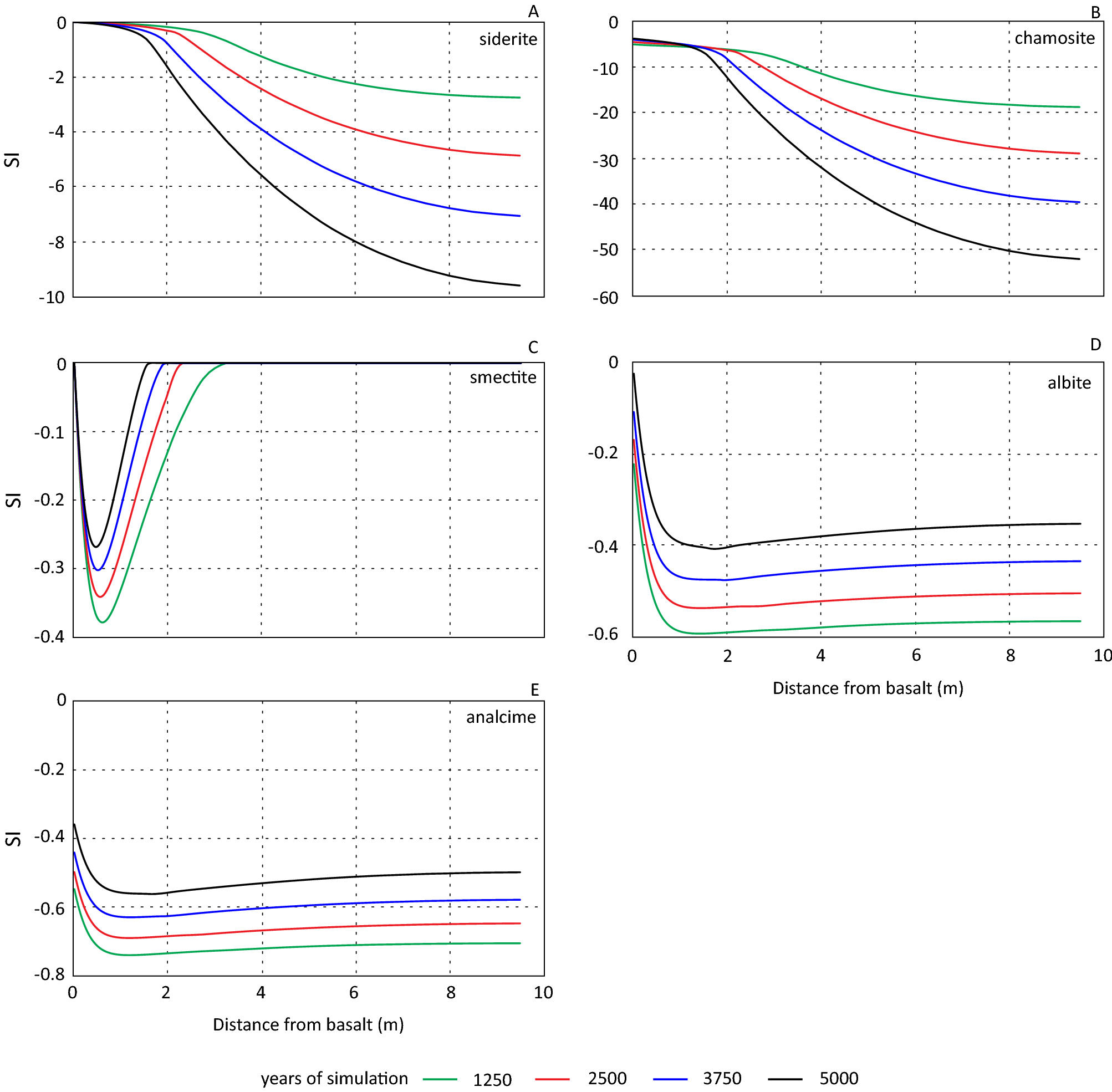

Temporal and spatial evolution of saturation index (SI) siderite (A), chlorite (chamosite) (B), smectite (C), albite (D) and analcime (E).
