Figure 1 | Scientific Reports

Figure 1

From: Modelling virus spreading in ride-pooling networks

Figure 1

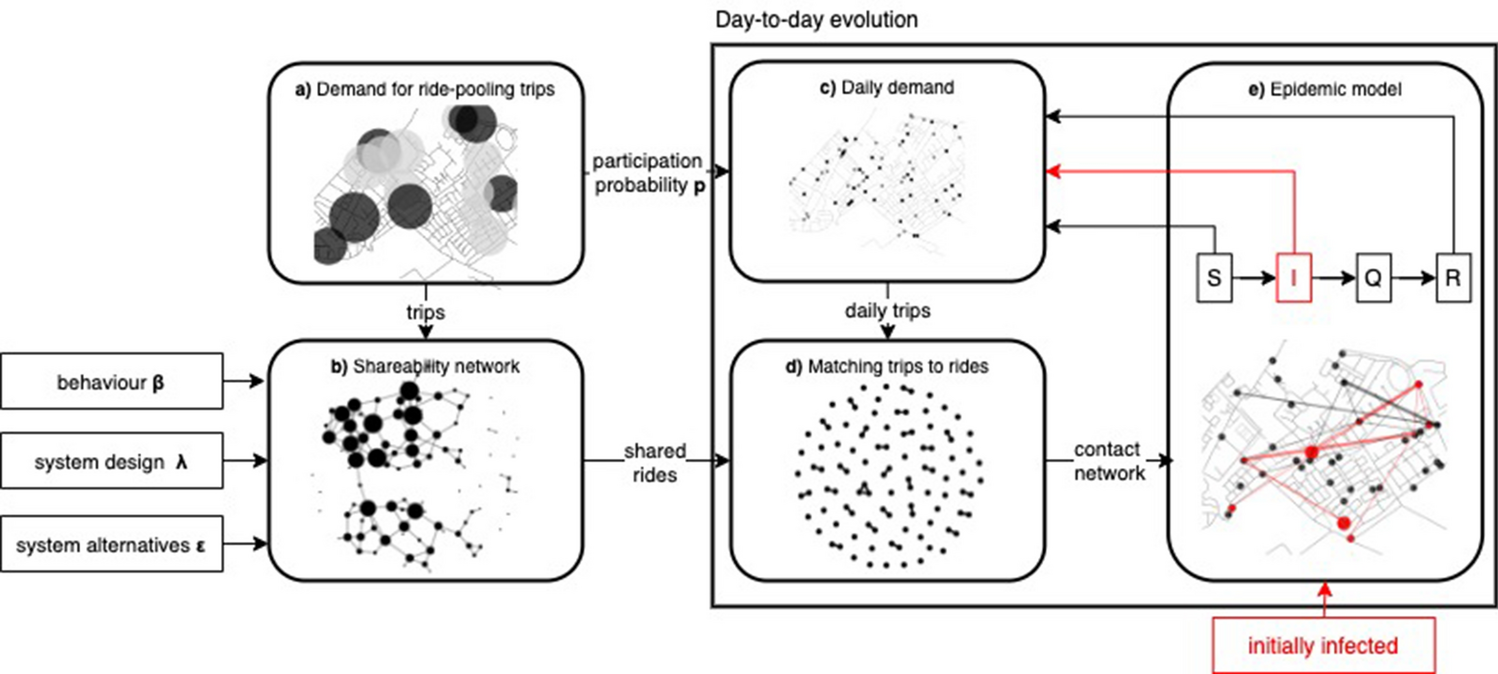

Methodology at glance: We consider travel demand for ride-pooling trips (a), for which we compute a shareability network (b) with a given behavioural parameters \(\beta \), system design \(\lambda \) and alternatives’ attractiveness \(\epsilon \). We simulate the day-to-day evolution of spreading until the virus is halted. Each day we obtain the daily demand (c), consisting of those who want and can travel (decided to travel with probability p and are not quarantined). Daily trip demand is optimally assigned to shared rides, which forms the contact network (d) on which virus spreading is then modelled (e). Starting from initially infected travellers, each day we simulate epidemic transitions: susceptible travellers are infected by infected co-travellers who quarantine after 7 days and return immune to the system after 14 days.
