Figure 4 | Scientific Reports

Figure 4

From: Environmental chemicals in dog testes reflect their geographical source and may be associated with altered pathology

Figure 4

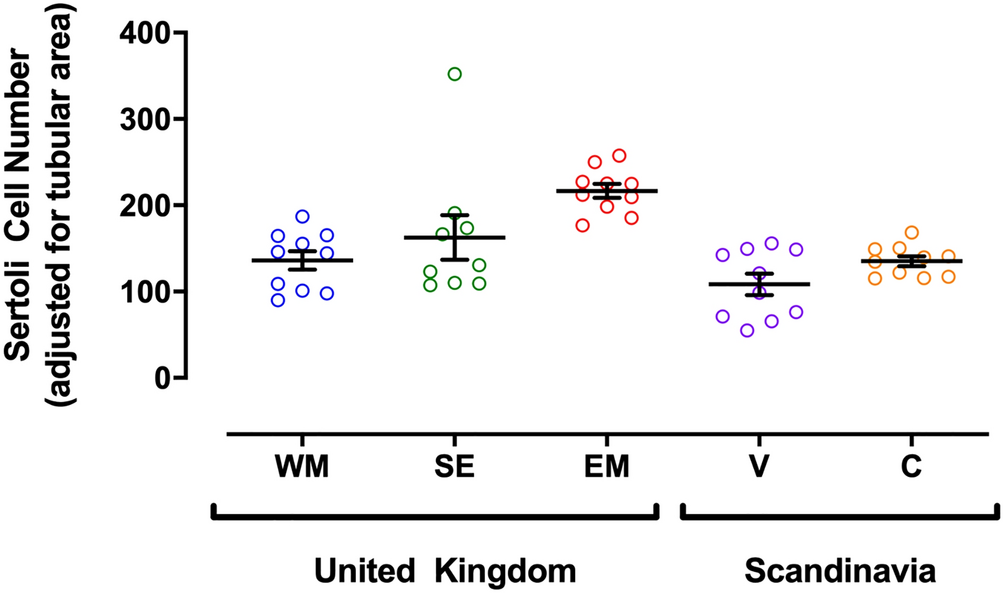

Regional variation in Sertoli cell numbers adjusted for tubular area. Sertoli cells were identified by vimentin immunohistochemistry. Each point represents an individual testis from a specific geographical location: UK: West Midlands (WM, blue), South East (SE, green), East Midlands (EM, red); Scandinavia: Vantaa, Finland (V, purple) and Copenhagen, Denmark (C, orange). Error bars and lines denote mean ± 1 S.E.M. Figure was created using GraphPad Prism version 8.0 for Mac, GraphPad Software, California, USA (https://www.graphpad.com).
