Figure 5

From: Environmental chemicals in dog testes reflect their geographical source and may be associated with altered pathology

Figure 5

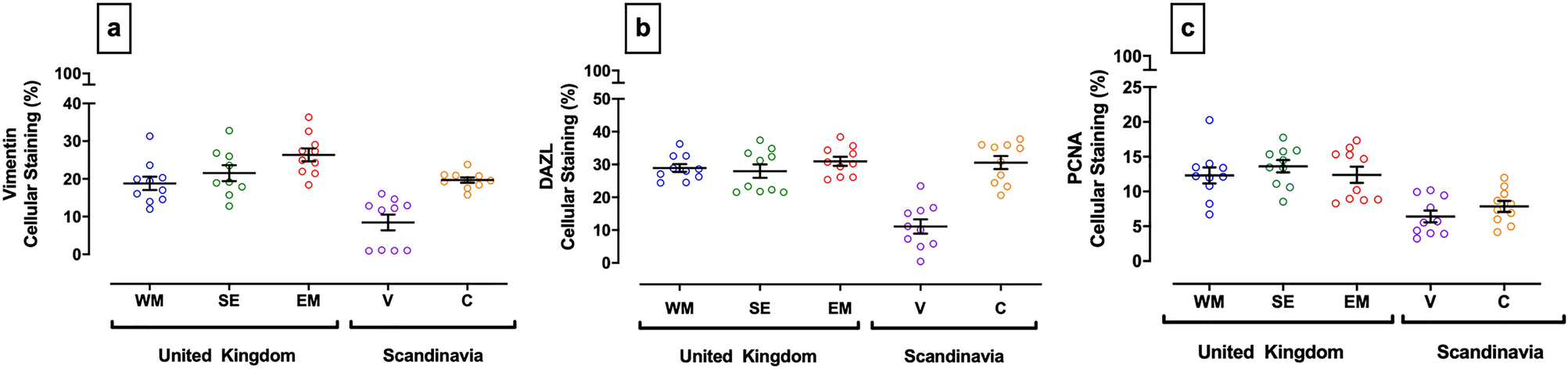

Quantification of immunostaining for vimentin (Sertoli cells), DAZL (germ cells) and a marker of cellular proliferation (PCNA) in dog testes from different geographical locations. (a) Vimentin, (b) DAZL, (c) PCNA. Each point represents an individual testis from a specific geographical region: UK; West Midlands (WM: blue), South East (SE: green) East Midlands (EM: red) and Scandinavia; Vantaa, Finland (V: purple) and Copenhagen, Denmark (C: orange). Error bars and lines denote mean ± 1 S.E.M. Figures were created using GraphPad Prism version 8.0 for Mac, GraphPad Software, California, USA (https://www.graphpad.com).
