From: Botulinum toxin injection changes resting state cerebellar connectivity in cervical dystonia

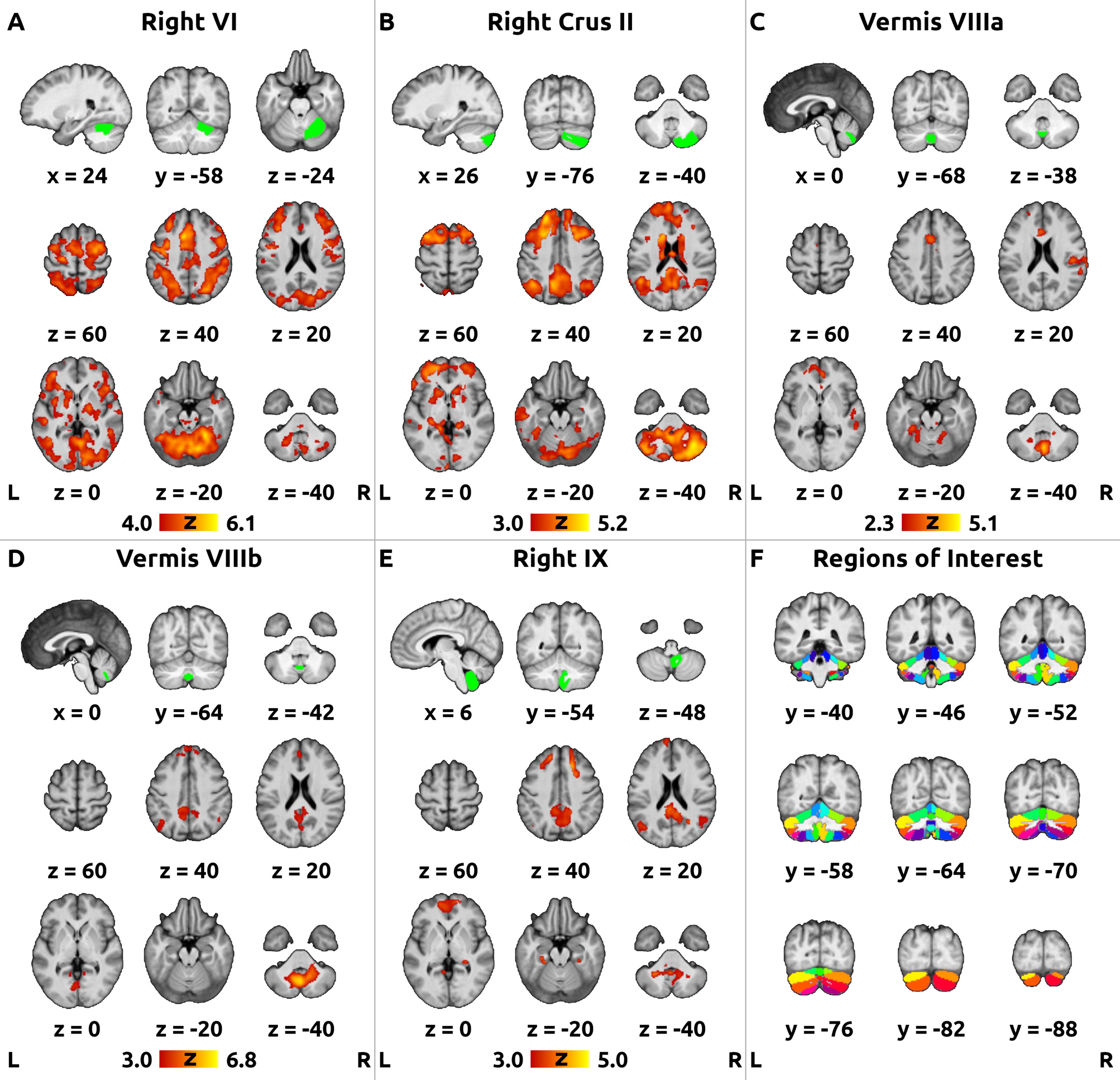

Mean functional connectivity of selected regions of interest. Figure shows mean post-hoc functional connectivity averaged across both sessions (baseline + follow-up) for the seeds with significant treatment-related changes and correlations in the main analysis: (A) Right Lobule VI, (b) Right Crus II, (C) Vermis VIIIa, (D) Vermis VIIIb, and (E) Right Lobule IX. The green overlays in the top row of panels A-E show the respective regions of interest (ROI) in the cerebellum. The red-yellow overlays in the bottom rows of panels A-E show the functional connectivity of each ROI across the whole brain, thresholded at different cluster-forming levels to produce visually comparable statistical maps (panel A: Z > 4.0; panels B, D,E: Z > 3.0; panel C: Z > 2.3) with the corrected cluster significance level of p < 0.05. An average T1-weighted image with the MNI152 standard space coordinates was used as a background. Right is right according to neurological convention.
