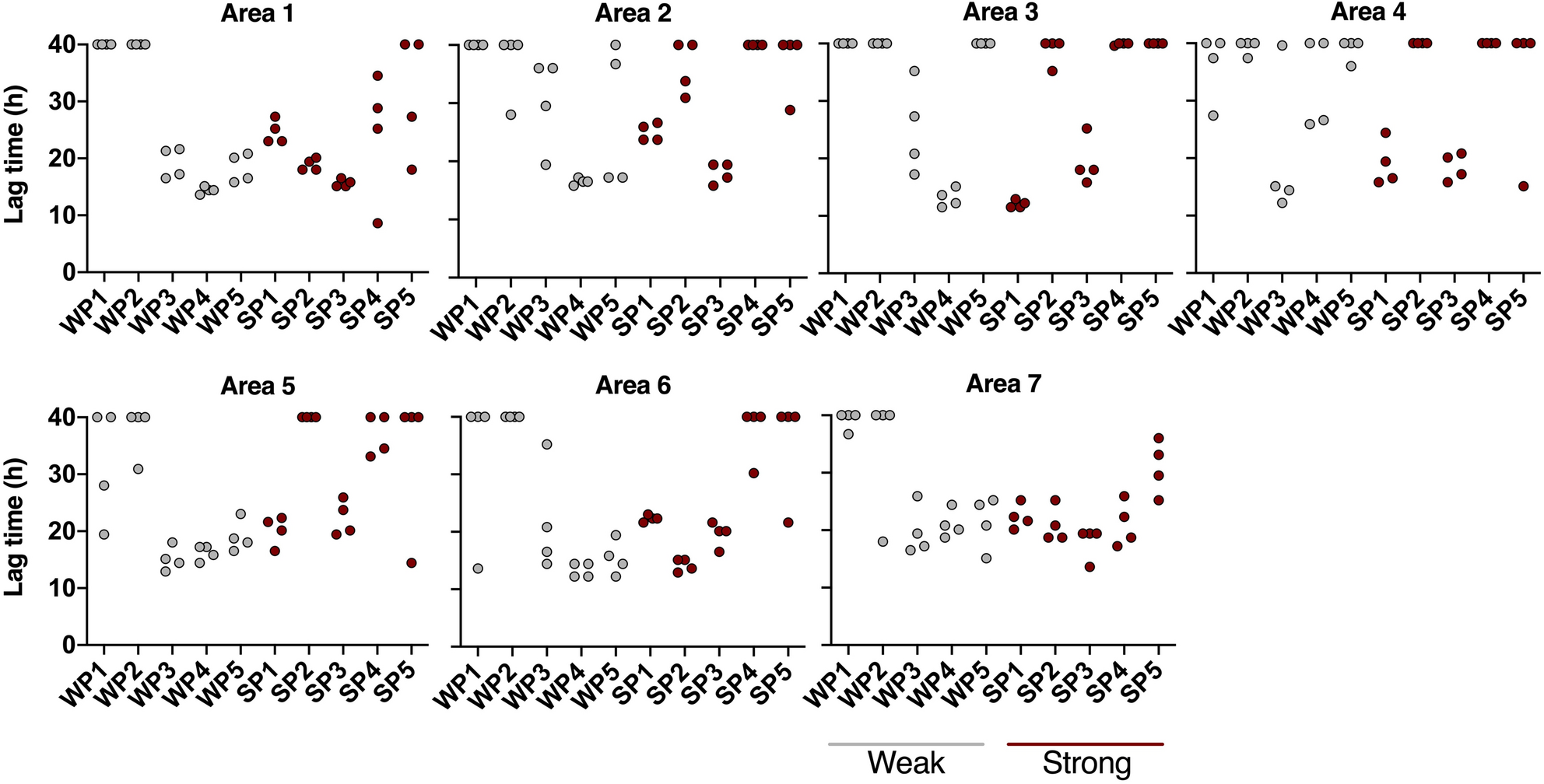

Figure 4
From: Detection of chronic wasting disease in mule and white-tailed deer by RT-QuIC analysis of outer ear
Lag times of RT-QuIC reactions seeded with ear pinna homogenates prepared from different areas (see Fig. 2) of five weak ELISA-positive (WP, grey) and five strong positive (SP, maroon) deer. Samples were subjected to IOME-RT-QuIC. Lag time (time to reach 10% maximum ThT fluorescence on the plate) within the cutoff time of the assay (40 h). Reactions with lag times of ≥ 40 h are aligned at the top of each graph.
