Figure 6
From: Zebrafish automatic monitoring system for conditioning and behavioral analysis

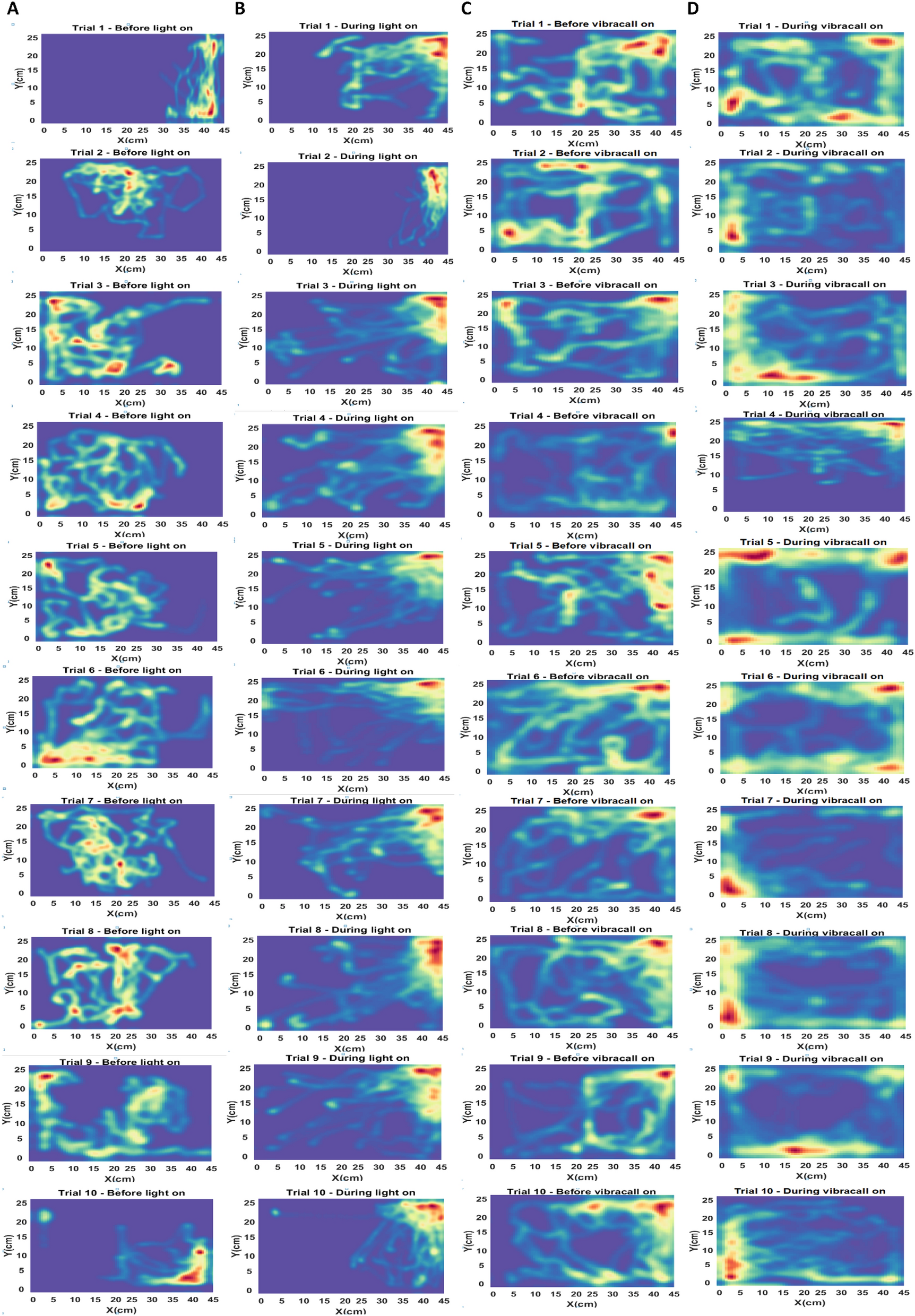

Thermal maps of the zebrafish’s location during complex conditioning (red and vibracall). The heat map contains records of the zebrafish’s location during training. At the moment when the stimulus was triggered, most fish moved to the delimited area of each stimulus, being the right side for the red LED light stimulus and the left side for the vibracall stimulus. (A) location of the fish before the red LED light was on, (B) location of the fish while the red LED light was on, (C) location of the fish before the vibracall stimulus on and D) location of the fish during the vibracall stimulus on.
