Figure 4 | Scientific Reports

Figure 4

From: Data suggest COVID-19 affected numbers greatly exceeded detected numbers, in four European countries, as per a delayed SEIQR model

Figure 4

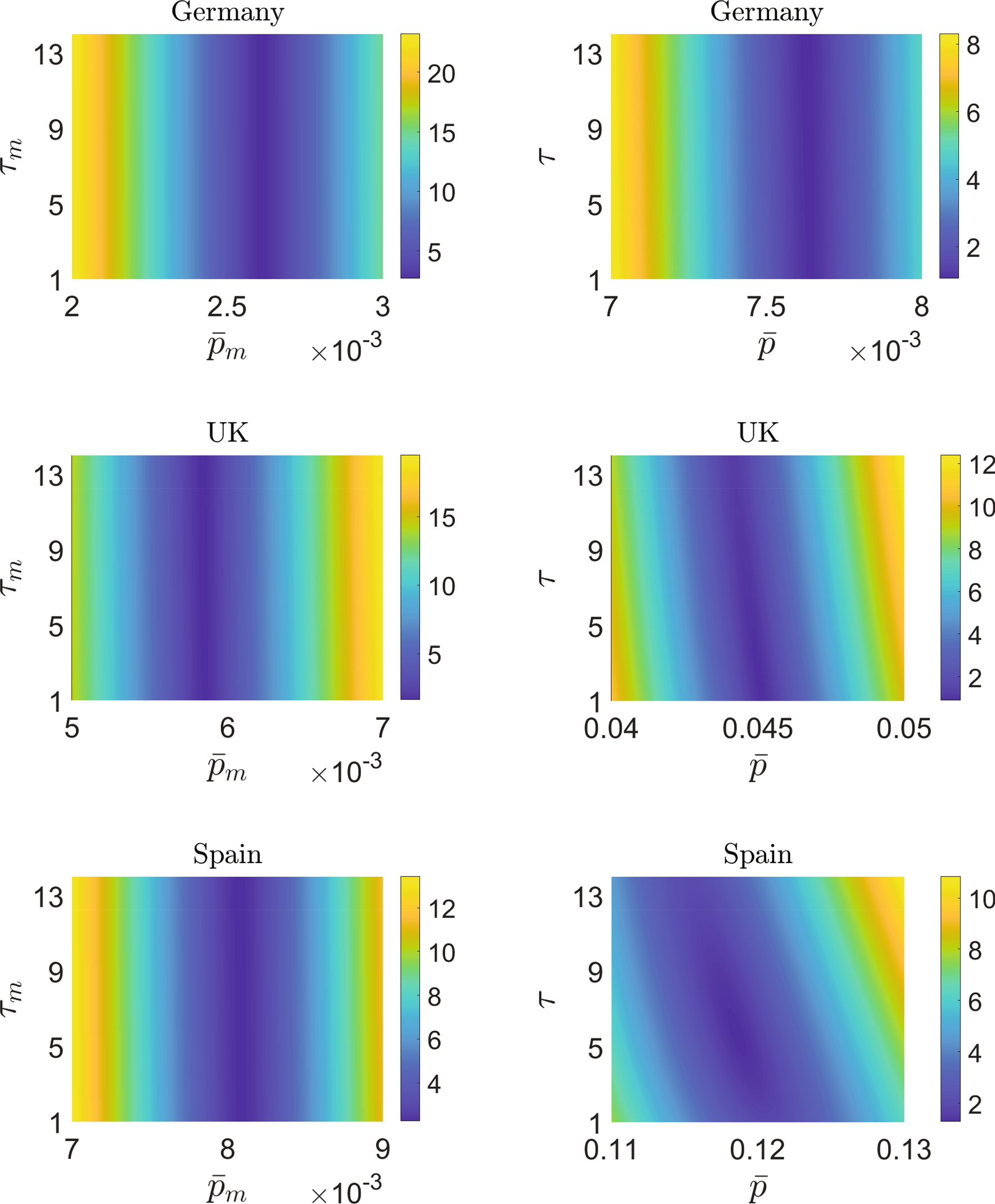

The left side shows the variation of \(E_{0m}\) in the \({\bar{p}}_m-\tau _m\) plane (for low values of \({\bar{p}}_m\)) obtained using the mean-\(\beta\) model. The parameters \(\beta _m\) and \(V_0\) are fixed at the values reported in Table 3. The right side shows the variation of \(E_{0}\) in the \({\bar{p}}-\tau\) plane (for low values of \({\bar{p}}\)) obtained from the continuum model. The parameters a, m, and \(f_0\) are fixed at the values reported in Table 4.
