From: Deep genetic structure at a small spatial scale in the endangered land snail Xerocrassa montserratensis

Figure 3

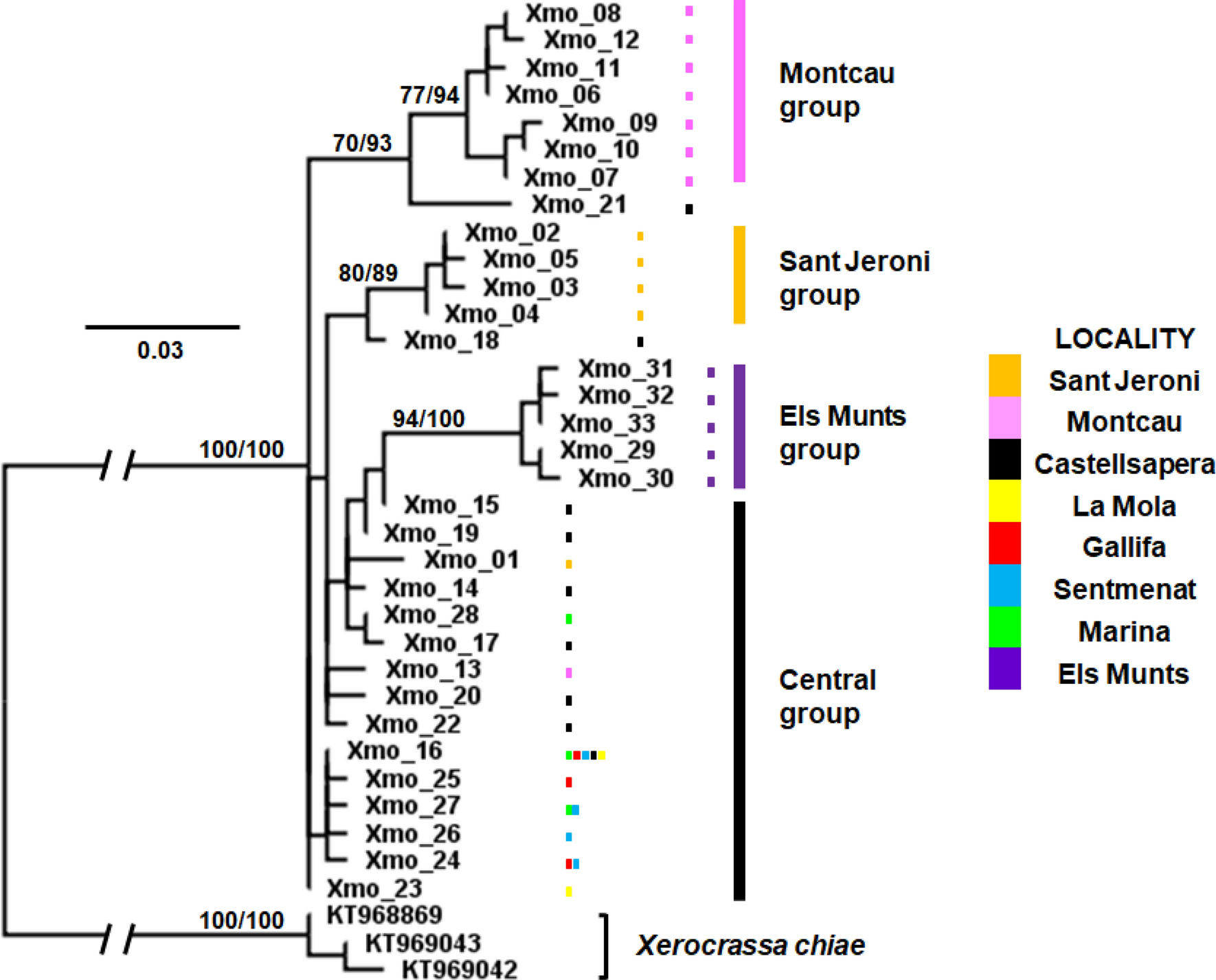

Maximum likelihood phylogenetic tree of Xerocrassa montserratensis COI haplotypes using sequences of X. chiae as outgroup (Table S4). Values at the nodes are only shown for high bootstrap values/posterior probabilities. The colours identify the locality where each haplotype has been detected. The groups are the same identified in the haplotype network in Fig. 2. The tree was edited using Figtree v. 1.4.4. (http://tree.bio.ed.ac.uk/software/figtree/).
