Figure 10
From: Characterization of an anterior segment organ culture model for open globe injuries

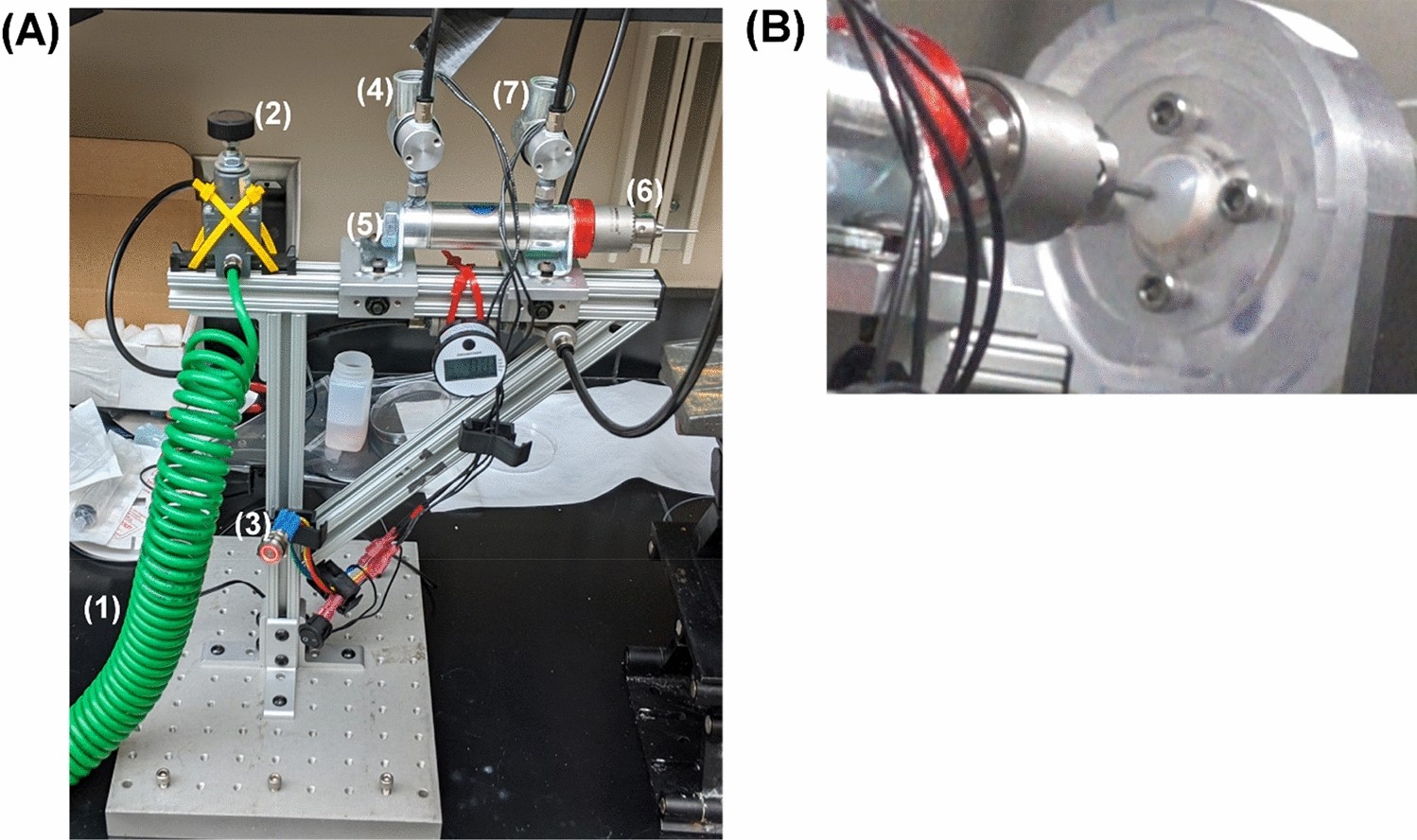

The pneumatic open globe injury device. (A) Overview of the device where (1) compressed air is delivered to a (2) pressure regulator set at 50 psi. After the device is (3) fired, the first (4) solenoid valve opens which drives the (5) linear actuator forward causing the (6) drill chuck and puncture object to create an injury in the ASOC setup. Afterwards, the (3) button is released which causes air to be redirected to the second (7) solenoid valve and retract the linear actuator and puncture device from the eye. (B) Image of the ASOC setup undergoing OG Injury induction.
