From: Transcriptome analysis of upland cotton revealed novel pathways to scavenge reactive oxygen species (ROS) responding to Na2SO4 tolerance

Figure 2

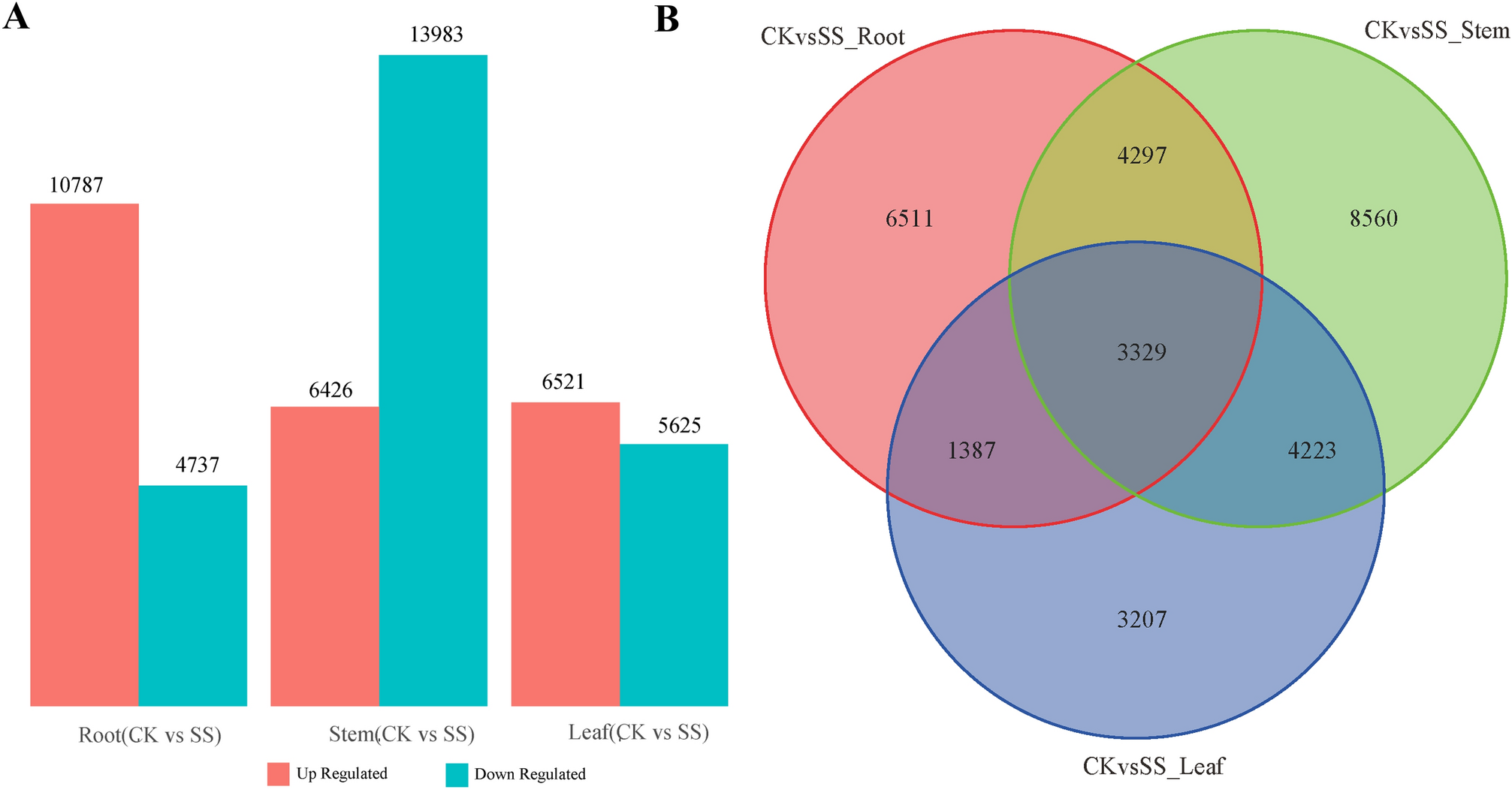

Expression dynamics changes and comparative analysis of differentially-expressed genes (DEGs) among CK_R, SS_R, CK_S, SS_S, CK_L, SS_L. CK: Control group; SS: 300 mM Na2SO4. (A) Number of up-regulated and down-regulated DEGs of each sample between SS and CK. (B) Number of DEGs among roots, stems and leaves under SS and CK treatments.
