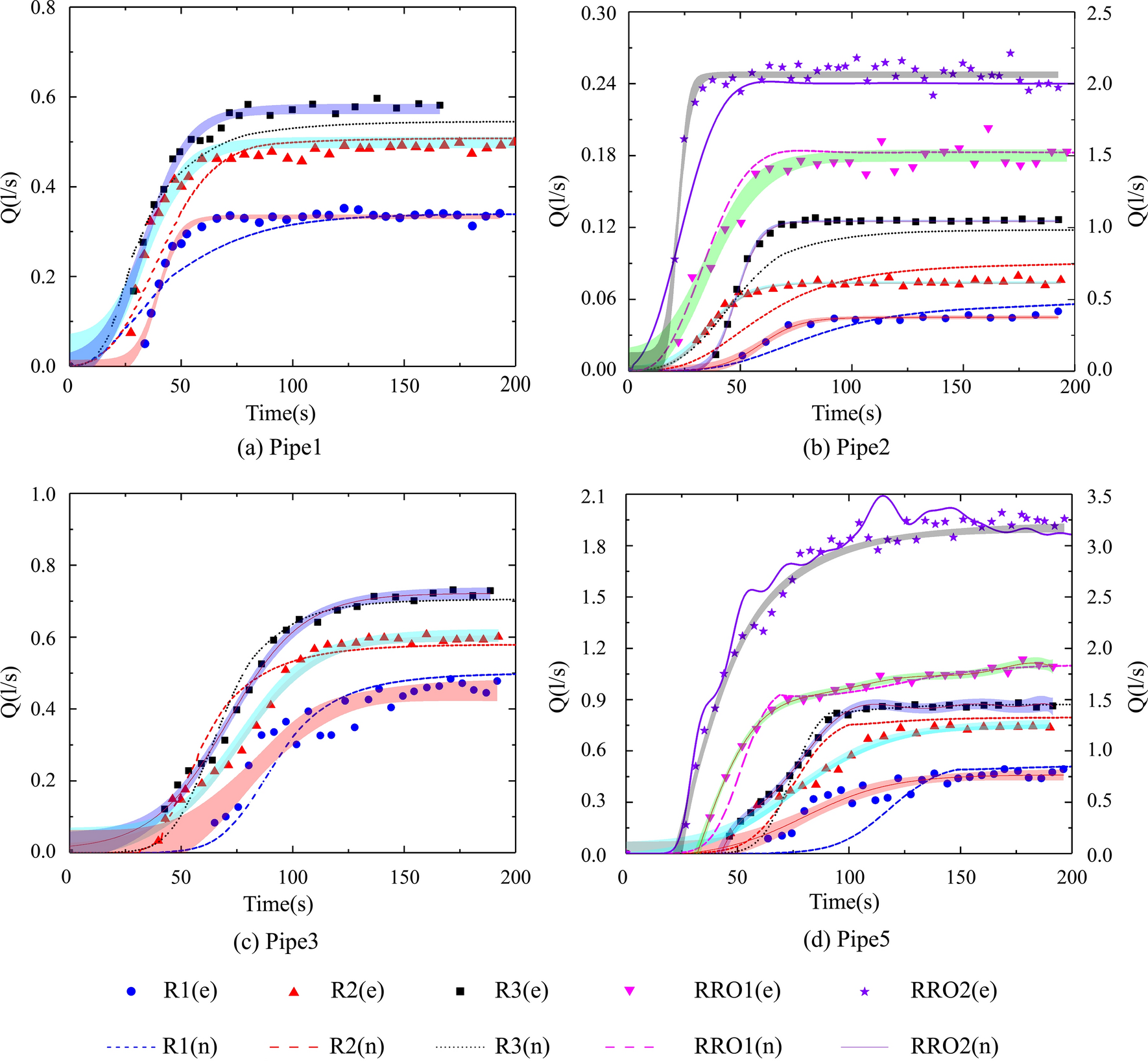

Figure 5
Modeled and measured discharges in the pipe system. The points and lines represent the measured values (e) and the numerical simulation values (n), respectively. There were three rainfall events (R1, R2, R3) and two rainfall-runoff events (RRO1, RRO2). In Fig. b and d, the secondary axis illustrates the discharges in the rainfall-runoff events.
