Figure 3
From: Anthropogenic drought dominates groundwater depletion in Iran

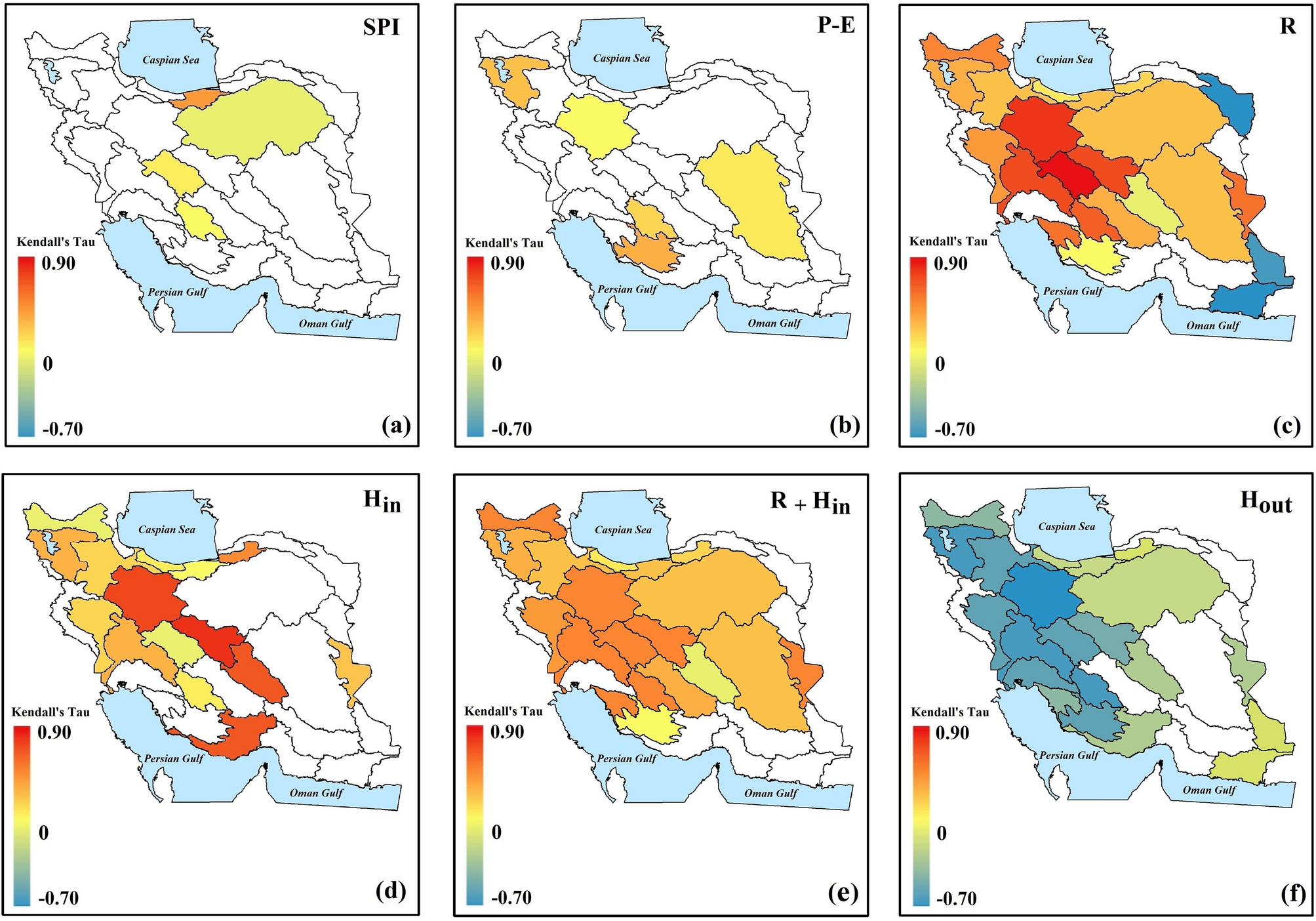

Dependency between annual changes in groundwater storage (ds/dt) and climatic, hydrologic and anthropogenic drivers of change across the 30 major Iranian basins during 2002–2015. In each panel, only basins with significant dependencies are shaded. Significant dependency is characterized by Kendall’s rank coefficients when p value ≤ 0.05 (This figure is created using ArcGIS 10.8).
