Figure 1
From: Mechanically reconfigurable multi-functional meta-optics studied at microwave frequencies

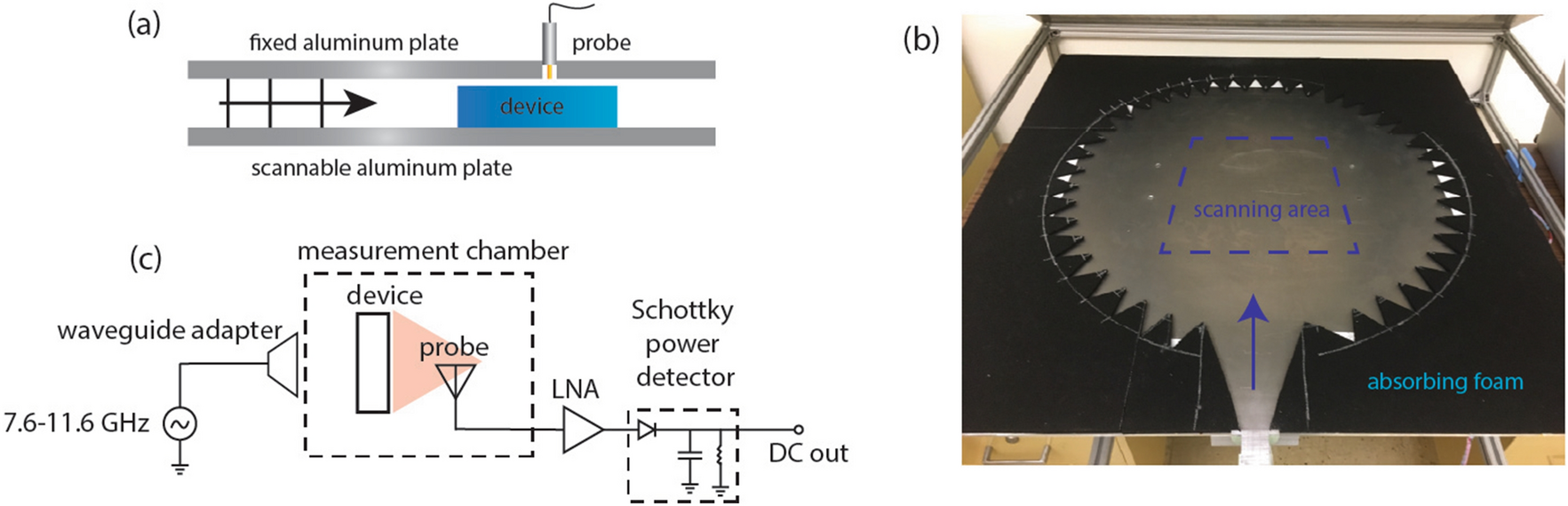

The anechoic chamber used to measure the 3D printed devices. (a) A sideview of the chamber. A TEM mode is injected into the anechoic chamber, exciting the device at approximately normal incidence. The fields in the cavity, including fields above the device, are measured with a small antenna probe extending through the top aluminum plate. The bottom aluminum plate is scanned in two directions to make a full 2D scan. (b) A picture of the anechoic chamber with the top aluminum plate removed. The scanning area is surrounded by absorbing foam. Triangles were cut out of the absorbing foam to reduce reflections. (c) A schematic representation of the measurement setup. The microwave source (Windfreak SynthHD) is scanned from 7.6 to 11.6 GHz and is injected through a waveguide adapter. The signal from the measurement probe is first amplified with two low-noise amplifiers, and the signal is then passed through a Schottky power detector (Keysight 8470B). The output is proportional to the field amplitude in the cavity.
