From: Application of multiple omics and network projection analyses to drug repositioning for pathogenic mosquito-borne viruses

Figure 4

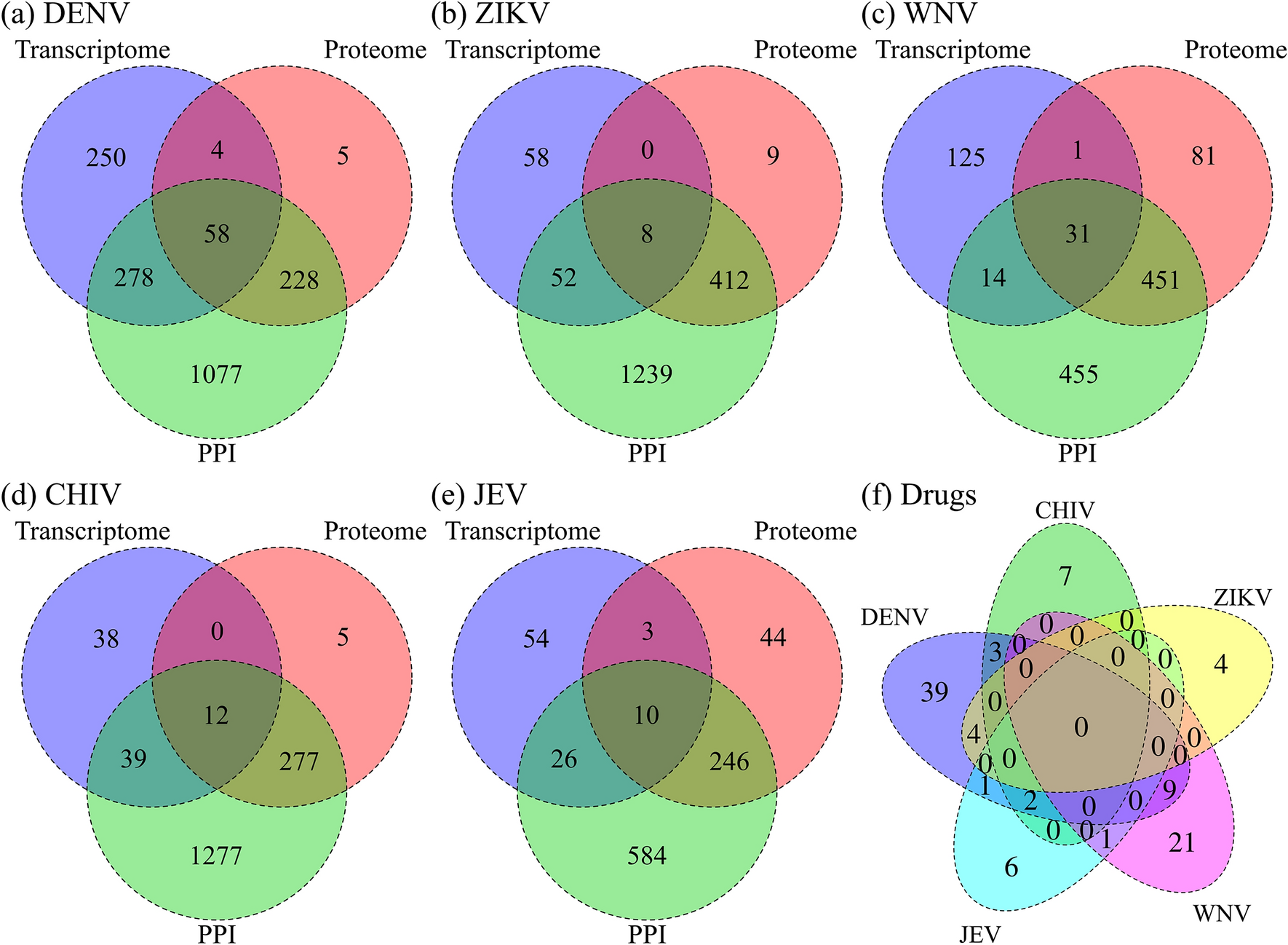

Drug candidates by multiple omics analyses. The numbers of drug candidates identified by the transcriptomic, proteomic and interactomic analyses are shown in blue, orange and green circles, respectively. The numbers of drug candidates that overlap between each analysis type are also shown: (a) DENV infection, (b) ZIKV infection, (c) WNV infection, (d) CHIV infection and (e) JEV infection. (f) The drug candidates of the intersection of the three omics analyses in five viral infections are shown. The numbers of drugs at the intersection of the three layers for DENV, ZIKV, WNV, CHIV and JEV are 58, 8, 31, 12 and 10, respectively. The total number of unique drugs was 97.
